Installation

SUPPLEMENTAL RESTRAINT SYSTEM: CURTAIN SHIELD AIRBAG ASSEMBLY: INSTALLATION

INSTALLATION

HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.

1. INSTALL CURTAIN SHIELD AIRBAG ASSEMBLY LH

NOTE: Do not twist the curtain shield airbag assembly LH when installing it.

(a) Connect the connector to the curtain shield airbag assembly LH.

NOTE: When handling the airbag connector, take care not to damage the airbag wire harness.

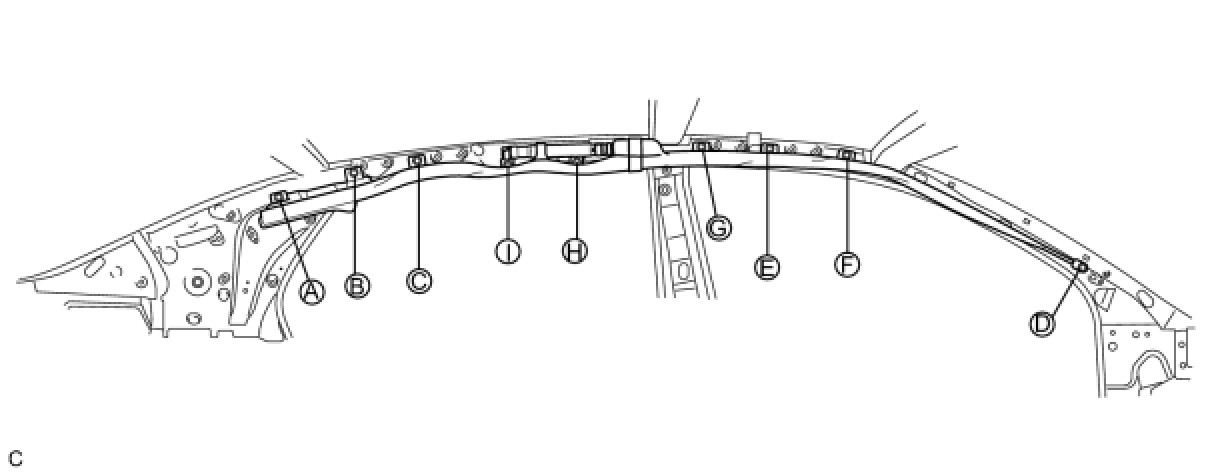

(b) Install the curtain shield airbag assembly LH in the order shown in the illustration.
(1) Install the 9 bolts in order of A to I.
Bolt D - Torque: 11 Nm (112 kgf-cm, 8 ft-lbf)
Bolt A, B, C, E, F, G, H, I - Torque: 13 Nm (133 kgf-cm, 10 ft-lbf)





2. INSTALL ROOF HEADLINING ASSEMBLY

HINT: Refer to the procedures from "INSTALL ROOF HEADLINING ASSEMBLY" Installation.

3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
4. PERFORM INITIALIZATION
(a) Perform initialization Repair Instruction - Initialization.

HINT: Some systems need initialization when disconnecting the cable from the negative battery terminal.

5. INSPECT SRS WARNING LIGHT
(a) Inspect the SRS warning light Diagnosis System.
