SUPPLEMENTAL RESTRAINT SYSTEM: FRONT PASSENGER AIRBAG ASSEMBLY: INSTALLATION

INSTALLATION

1. INSTALL FRONT PASSENGER AIRBAG ASSEMBLY
2. INSTALL INSTRUMENT PANEL WIRE ASSEMBLY

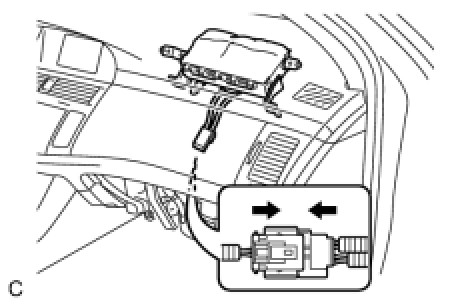

(a) Connect the 2 connectors to the front passenger airbag assembly.

NOTE: When handling the airbag connector, take care not to damage the airbag wire harness.

(b) Install the clip.
3. INSTALL HEATER TO REGISTER DUCT NO.3
4. INSTALL SIDE DEFROSTER NOZZLE DUCT NO.2
5. INSTALL INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

HINT: Refer to procedures from "INSTALL INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY" Installation.

6. CONNECT FRONT PASSENGER AIRBAG ASSEMBLY CONNECTOR





(a) Connect the connector.

NOTE: When handling the airbag connector, take care not to damage the airbag wire harness.

7. INSTALL INSTRUMENT PANEL FINISH LOWER PANEL RH
8. INSTALL INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY NO.2
9. INSTALL FRONT DOOR WEATHERSTRIP RH
10. INSTALL COWL SIDE TRIM SUB-ASSEMBLY RH
11. INSTALL FRONT DOOR SCUFF PLATE RH
12. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
13. INSPECT STEERING PAD
14. PERFORM INITIALIZATION
(a) Perform initialization Repair Instruction - Initialization.

HINT: Some systems need initialization when disconnecting the cable from the negative battery terminal.

15. INSPECT SRS WARNING LIGHT
(a) Inspect the SRS warning light Diagnosis System.
