Removal

SUPPLEMENTAL RESTRAINT SYSTEM: SPIRAL CABLE: REMOVAL

REMOVAL

1. PRECAUTION

CAUTION: Be sure to read the "PRECAUTION" thoroughly before servicing Service Precautions.

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait for 90 seconds after disconnecting the cable to prevent the airbag working

3. PLACE FRONT WHEELS FACING STRAIGHT AHEAD
4. REMOVE STEERING WHEEL COVER LOWER NO.3 Removal
5. REMOVE STEERING WHEEL COVER LOWER NO.2 Removal
6. REMOVE STEERING PAD Removal
7. REMOVE STEERING WHEEL ASSEMBLY Removal
8. REMOVE STEERING COLUMN COVER LOWER Removal
9. REMOVE STEERING COLUMN COVER Removal
10. REMOVE SPIRAL CABLE





(a) Disconnect the connectors from the spiral cable.

NOTE: When handling the airbag connector, take care not to damage the airbag wire harness.

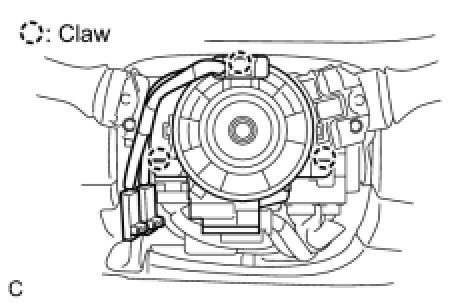

(b) Disengage the 3 claws and remove the spiral cable.
11. REMOVE STEERING ANGLE SENSOR (w/ VSC) Removal
