Removal

SUPPLEMENTAL RESTRAINT SYSTEM: FRONT AIRBAG SENSOR: REMOVAL

REMOVAL

HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.

1. PRECAUTION

CAUTION: Be sure to read the "PRECAUTION" thoroughly before servicing Service Precautions.

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait for 90 seconds after disconnecting the cable to prevent the airbag working.

3. REMOVE FRONT BUMPER COVER Removal

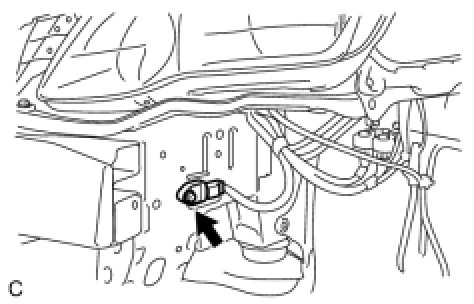

4. REMOVE FRONT AIRBAG SENSOR





(a) Disconnect the connector from the front airbag sensor (LH).
(b) Remove the bolt and the front airbag sensor (LH).
