Removal

SUPPLEMENTAL RESTRAINT SYSTEM: OCCUPANT CLASSIFICATION ECU: REMOVAL

REMOVAL

1. PRECAUTION

CAUTION: Be sure to read the "PRECAUTION" thoroughly before servicing Service Precautions.

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait for 90 seconds after disconnecting the cable to prevent the airbag working.

3. REMOVE FRONT RH SEAT ASSEMBLY Removal
4. REMOVE OCCUPANT CLASSIFICATION ECU





(a) Disconnect the 2 connectors from the occupant classification ECU.

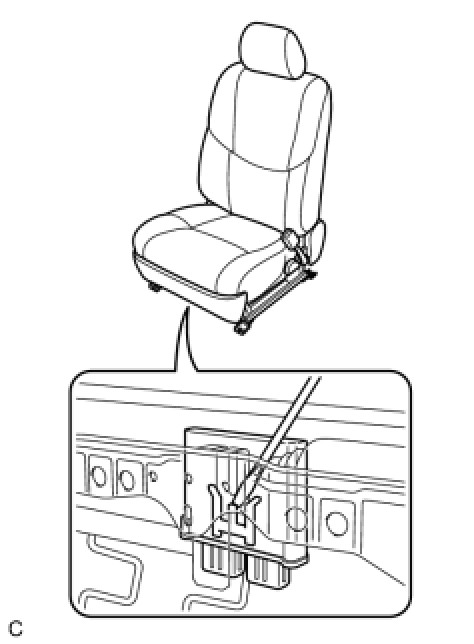

(b) Using a screwdriver, remove the occupant classification ECU.
