SEAT BELT: CHILD RESTRAINT SEAT ANCHOR BRACKET: REMOVAL

REMOVAL

HINT: The procedures listed below are for the LH side.

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

HINT: Service Precautions

2. REMOVE REAR SEAT CUSHION ASSEMBLY Removal
3. REMOVE REAR SEAT HEADREST ASSEMBLY
4. REMOVE REAR SHELF COVER CAP Removal
5. REMOVE REAR SEATBACK ASSEMBLY LH Removal
6. REMOVE REAR SEATBACK ASSEMBLY RH Removal
7. REMOVE REAR DOOR SCUFF PLATE LH Removal
8. REMOVE REAR DOOR SCUFF PLATE RH Removal
9. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH
10. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP RH
11. REMOVE REAR SEAT SIDE GARNISH LH Removal
12. REMOVE REAR SEAT SIDE GARNISH RH Removal
13. REMOVE ROOF SIDE GARNISH ASSEMBLY INNER LH Removal
14. REMOVE ROOF SIDE GARNISH ASSEMBLY INNER RH Removal
15. REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY





(a) Remove the bolt and disconnect the rear seat belt assembly outer.

HINT: Use the same procedures for the RH side and LH side.





(b) Remove the nut and disconnect the rear seat inner w/ center belt assembly RH.





(c) Disengage the 4 claws and the rear seat shoulder belt cover.

HINT: Use the same procedures for the RH side and LH side.





(d) Disengage the 4 claws and the rear seat shoulder belt cover.





(e) Disengage the 5 claws, 4 clips, and the package tray panel assembly.
(f) Disconnect the connector and remove the package tray panel assembly.
16. REMOVE CHILD RESTRAINT SEAT TETHER ANCHOR BRACKET

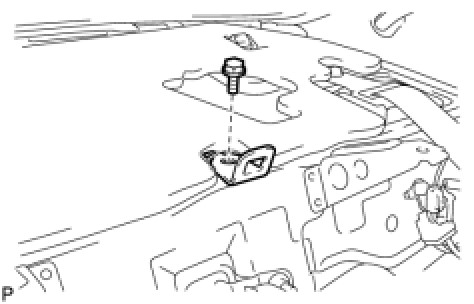

(a) Remove the bolt and the child restraint seat tether anchor bracket.
