SEAT BELT: FRONT SEAT INNER BELT ASSEMBLY: INSTALLATION

INSTALLATION

1. INSTALL FRONT SEAT INNER BELT ASSEMBLY LH

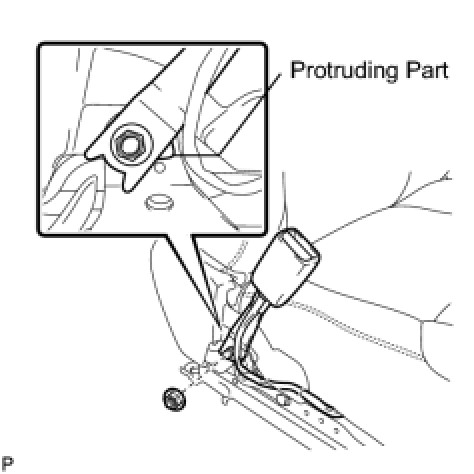

(a) Install the front seat inner belt assembly LH with the nut.
Torque: 42 Nm (428 kgf-cm, 31 ft-lbf)

NOTE: Do not overlap the anchor part of the rear belt and the protruding part of the rear seat adjuster.





(b) Driver's seat:
(1) Engage the claw and the 4 clamps.
(2) Connect the connector.





(c) Passenger's manual seat:
(1) Engage the claw and the 3 clamps.





(d) Passenger's power seat:
(1) Engage the claw and the clamp.
(2) Connect the connector.
2. INSTALL FRONT LH SEAT ASSEMBLY (for Power Seat) Installation
3. INSTALL FRONT RH SEAT ASSEMBLY (for Manual Seat) Installation
4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL (for Manual Seat)
5. PERFORM INITIALIZATION

HINT: Repair Instruction - Initialization

6. INSPECT FUNCTION OF POWER SEAT OPERATION (for Power Seat)

HINT: Front Power Seat Control System (w/o Memory)

7. CHECK SEAT SLIDE ADJUSTER LOCKS (for Manual Seat) Installation
8. CHECK SEAT HEATER OPERATION (w/ Seat Heater System)
9. INITIALIZE FRONT PASSENGER OCCUPANT CLASSIFICATION SYSTEM (for Front Passenger Seat)

HINT: Repair Instruction - Initialization

10. INSPECT SRS WARNING LIGHT

HINT: Diagnosis System
