Removal

SEAT BELT: FRONT SEAT INNER BELT ASSEMBLY: REMOVAL

REMOVAL

HINT: Use the same procedures for the RH side and LH side.

1. REMOVE SEAT TRACK BRACKET COVER OUTER FRONT LH (for Power Seat) Removal
2. REMOVE SEAT TRACK BRACKET COVER INNER FRONT LH (for Power Seat) Removal
3. REMOVE FRONT SEAT TRACK COVER LH REAR OUTER (for Power Seat) Removal
4. REMOVE REAR SEAT TRACK BRACKET COVER INNER LH (for Power Seat) Removal
5. REMOVE FRONT LH SEAT ASSEMBLY (for Power Seat) Removal
6. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL (for Manual Seat)

HINT: Service Precautions

7. REMOVE SEAT TRACK BRACKET COVER OUTER FRONT RH (for Manual Seat) Removal
8. REMOVE SEAT TRACK BRACKET COVER INNER FRONT RH (for Manual Seat) Removal
9. REMOVE FRONT SEAT TRACK COVER RH REAR OUTER (for Manual Seat) Removal
10. REMOVE SEAT TRACK BRACKET COVER INNER RH (for Manual Seat) Removal
11. REMOVE FRONT RH SEAT ASSEMBLY (for Manual Seat) Removal
12. REMOVE FRONT SEAT INNER BELT ASSEMBLY LH

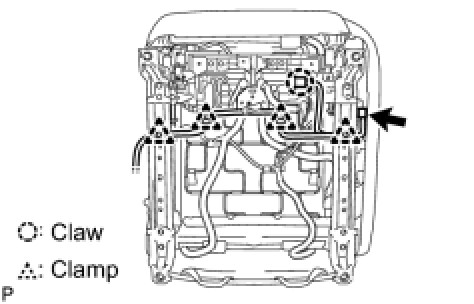

(a) Driver's seat:
(1) Disconnect the connector.
(2) Disengage the claw and the 4 clamps.

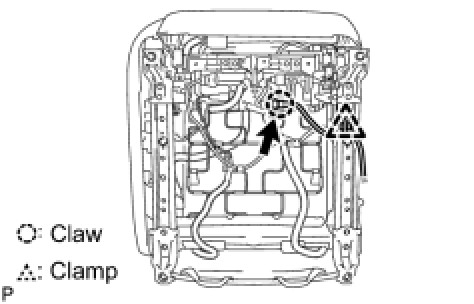

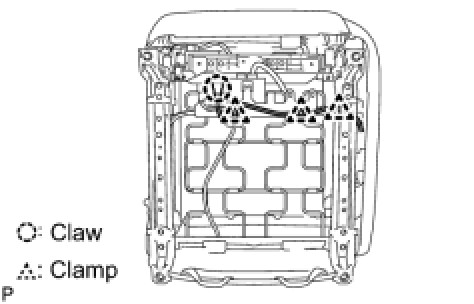

(b) Passenger's manual seat:
(1) Disengage the claw and the 3 clamps.

(d) Remove the nut and the front seat inner belt assembly LH.
