Seat Belt Systems: Service and Repair








SEAT BELT: SEAT BELT SYSTEM: COMPONENTS

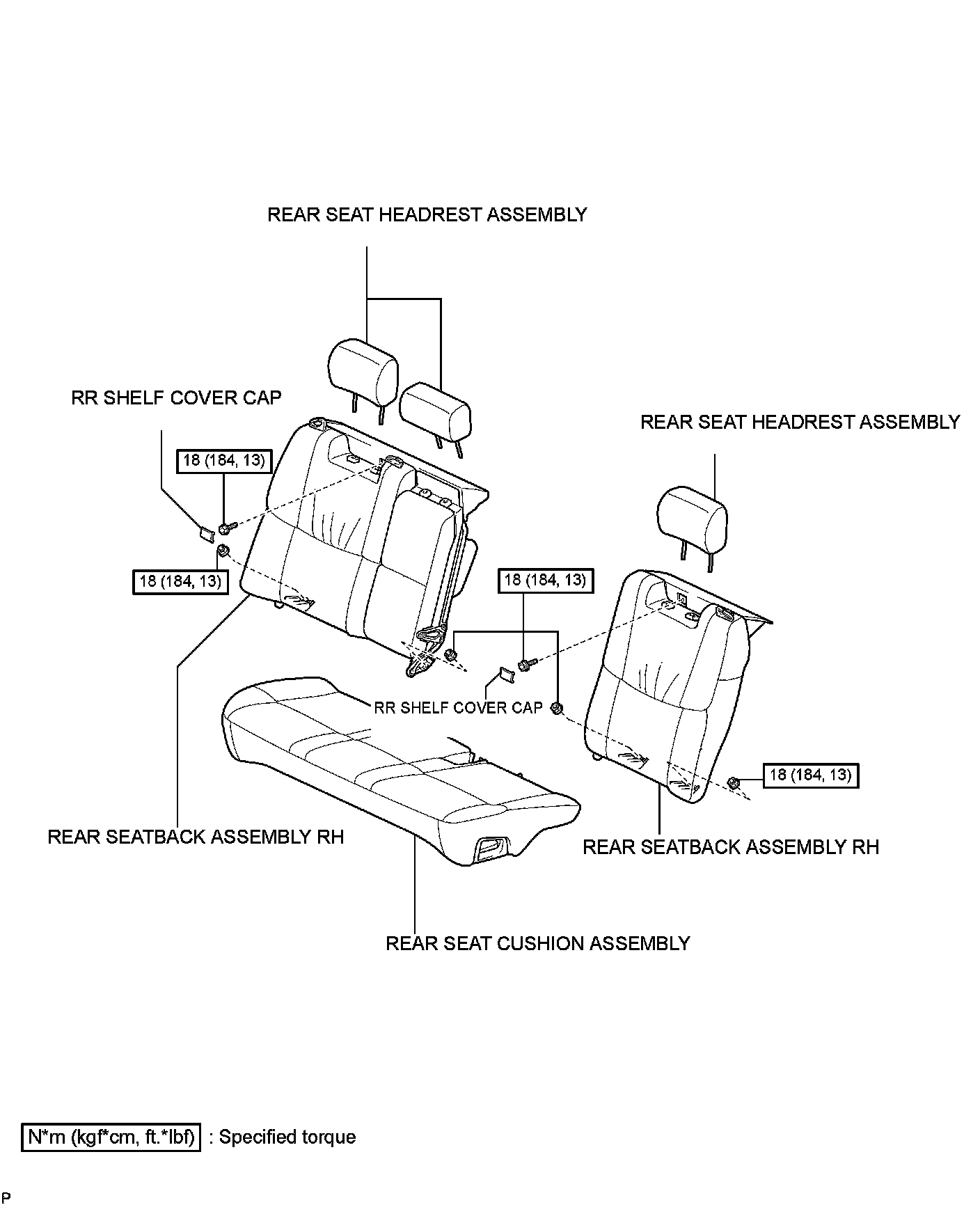

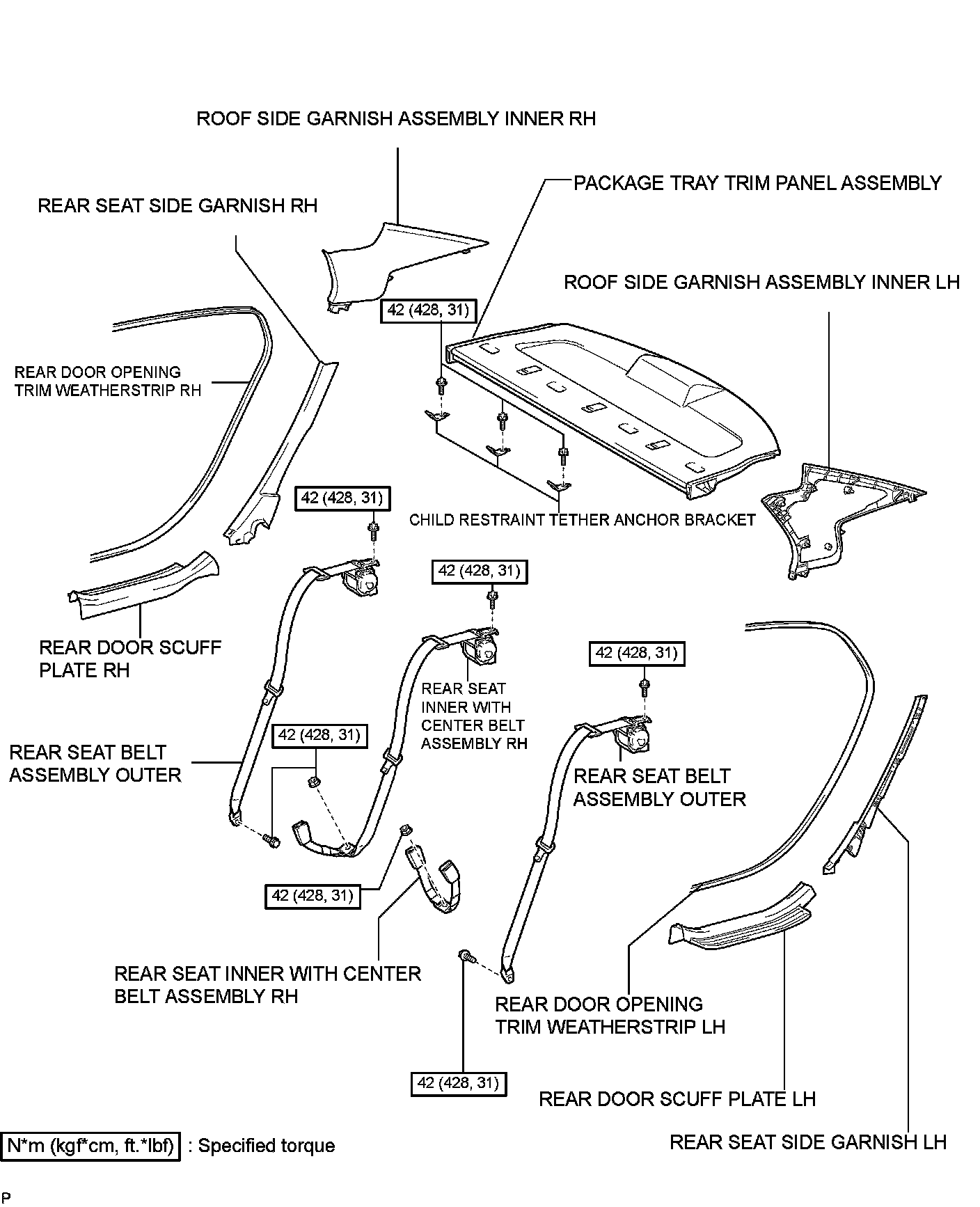

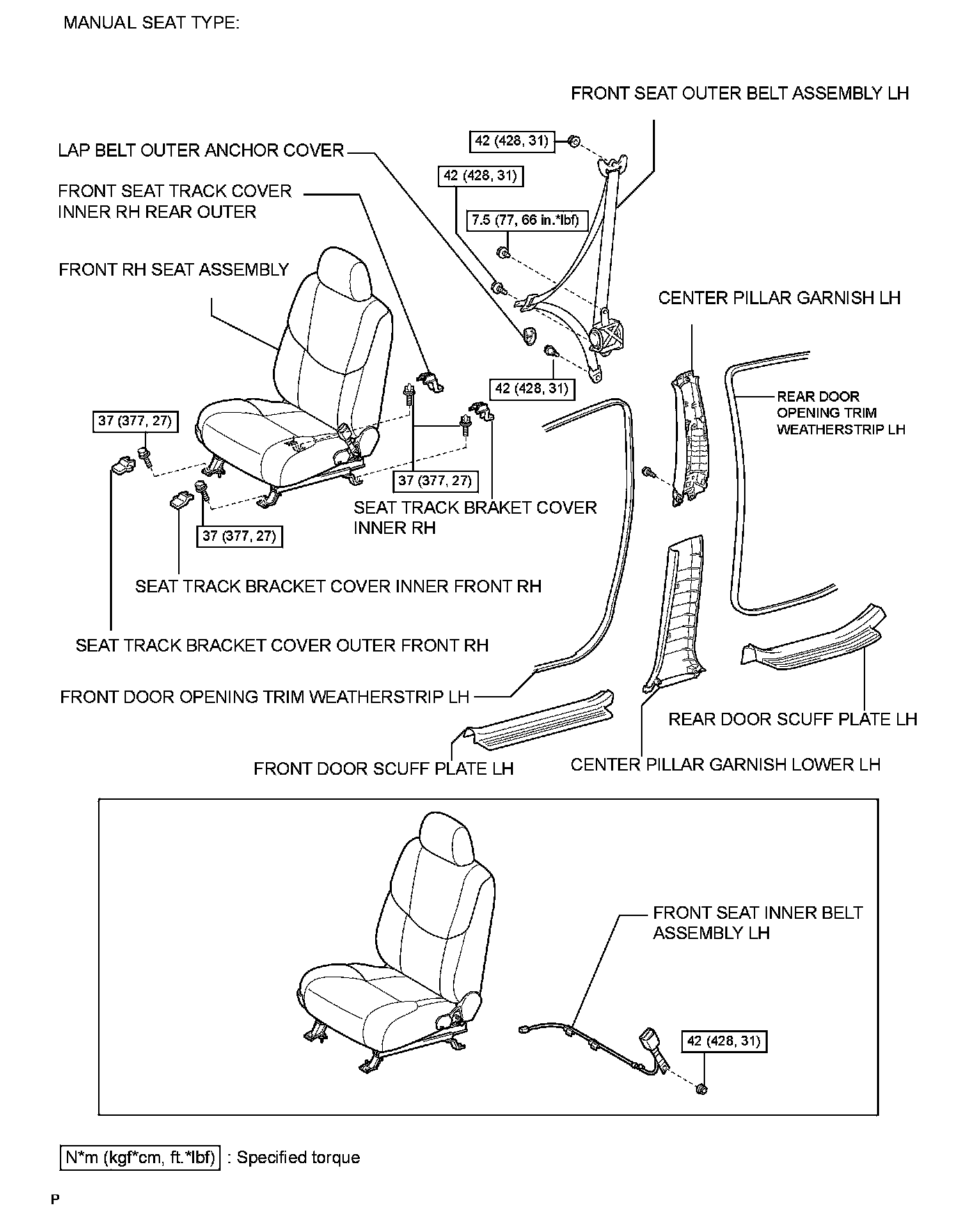

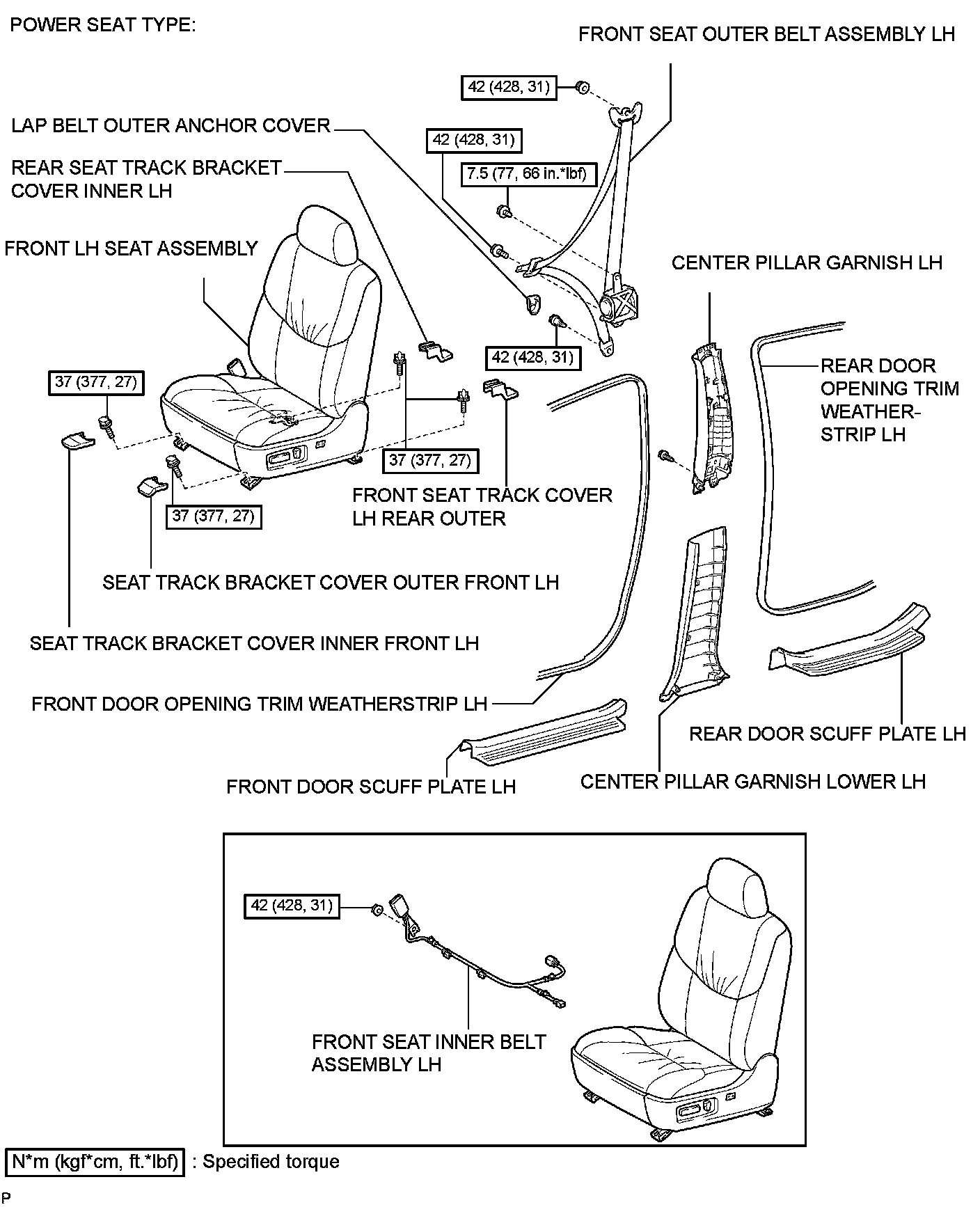

COMPONENTS

ILLUSTRATION
