How To Proceed With Troubleshooting

SUPPLEMENTAL RESTRAINT SYSTEM: OCCUPANT CLASSIFICATION SYSTEM: HOW TO PROCEED WITH TROUBLESHOOTING

HOW TO PROCEED WITH TROUBLESHOOTING

HINT: *: Use Techstream.

1. VEHICLE BROUGHT TO WORKSHOP
NEXT -- Continue to next step.

2. CUSTOMER PROBLEM ANALYSIS
NEXT -- Continue to next step.

3. PASSENGER AIRBAG ON/OFF INDICATOR CHECK
NEXT -- Continue to next step.

4. DTCs CHECK (Present and Past DTCs)*
(a) Check for DTCs.
Result:





B -- GO TO PROBLEM SYMPTOMS TABLE
A -- Continue to next step.

5. DTCs CHART
NEXT -- Continue to next step.

6. CIRCUIT INSPECTION*
NEXT -- Continue to next step.

7. REPAIR
NEXT -- Continue to next step.

8. CLEAR DTCs (Present and Past DTCs)*
(a) Clear for DTCs.
NEXT -- Continue to next step.

9. DTCs CHECK (Present and Past DTCs)*
(a) Check for DTCs.

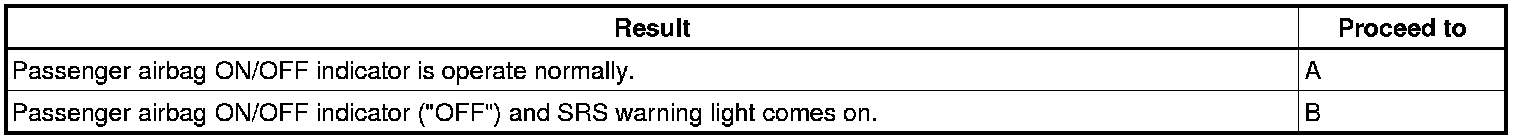

Result:





B -- Go to step 5
A -- Continue to next step.

10. SYMPTOM SIMULATION
(a) Check the passenger airbag ON/OFF indicator condition.
Result:





B -- Go to step 5
A -- Continue to next step.

11. CONFIRMATION TEST
NEXT -- END
