Pinout Values and Diagnostic Parameters
SUPPLEMENTAL RESTRAINT SYSTEM: OCCUPANT CLASSIFICATION SYSTEM: TERMINALS OF ECU
TERMINALS OF ECU

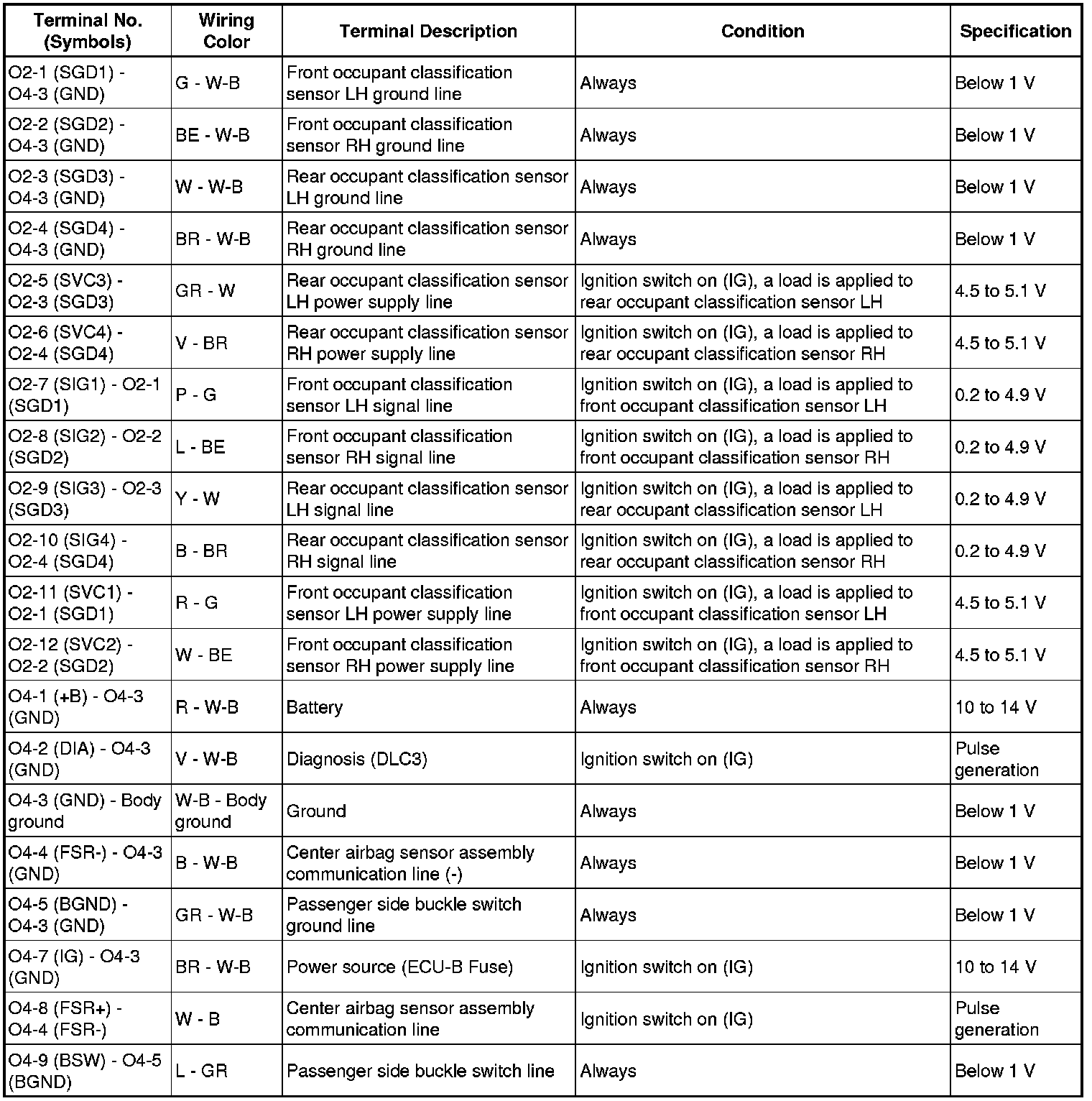

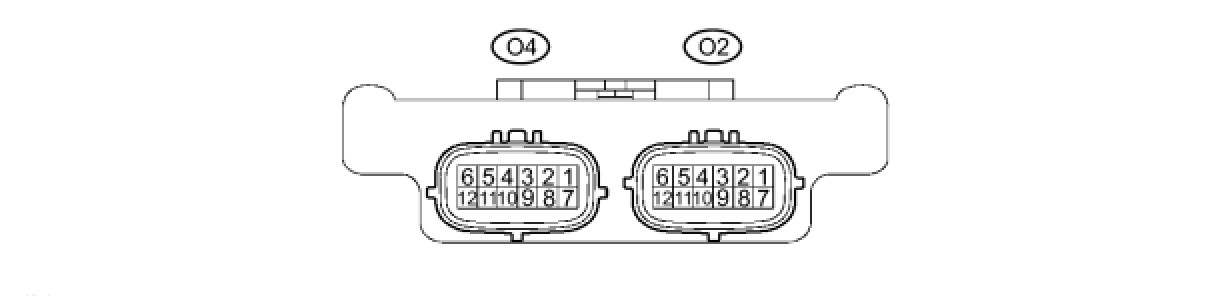

1. OCCUPANT CLASSIFICATION ECU (for Power seat)

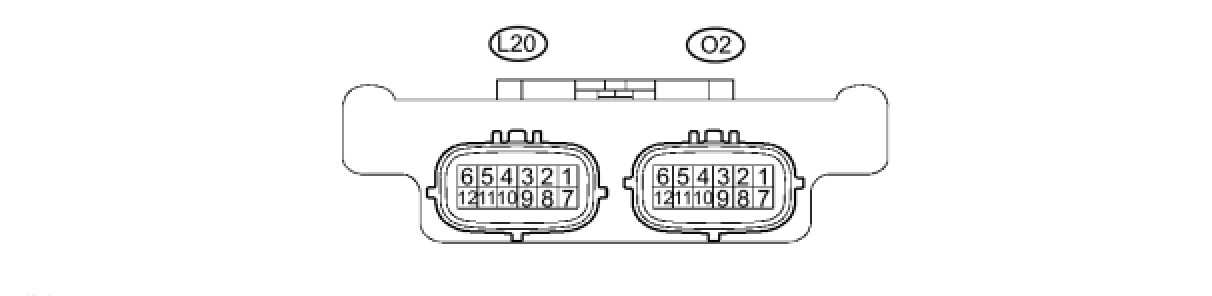

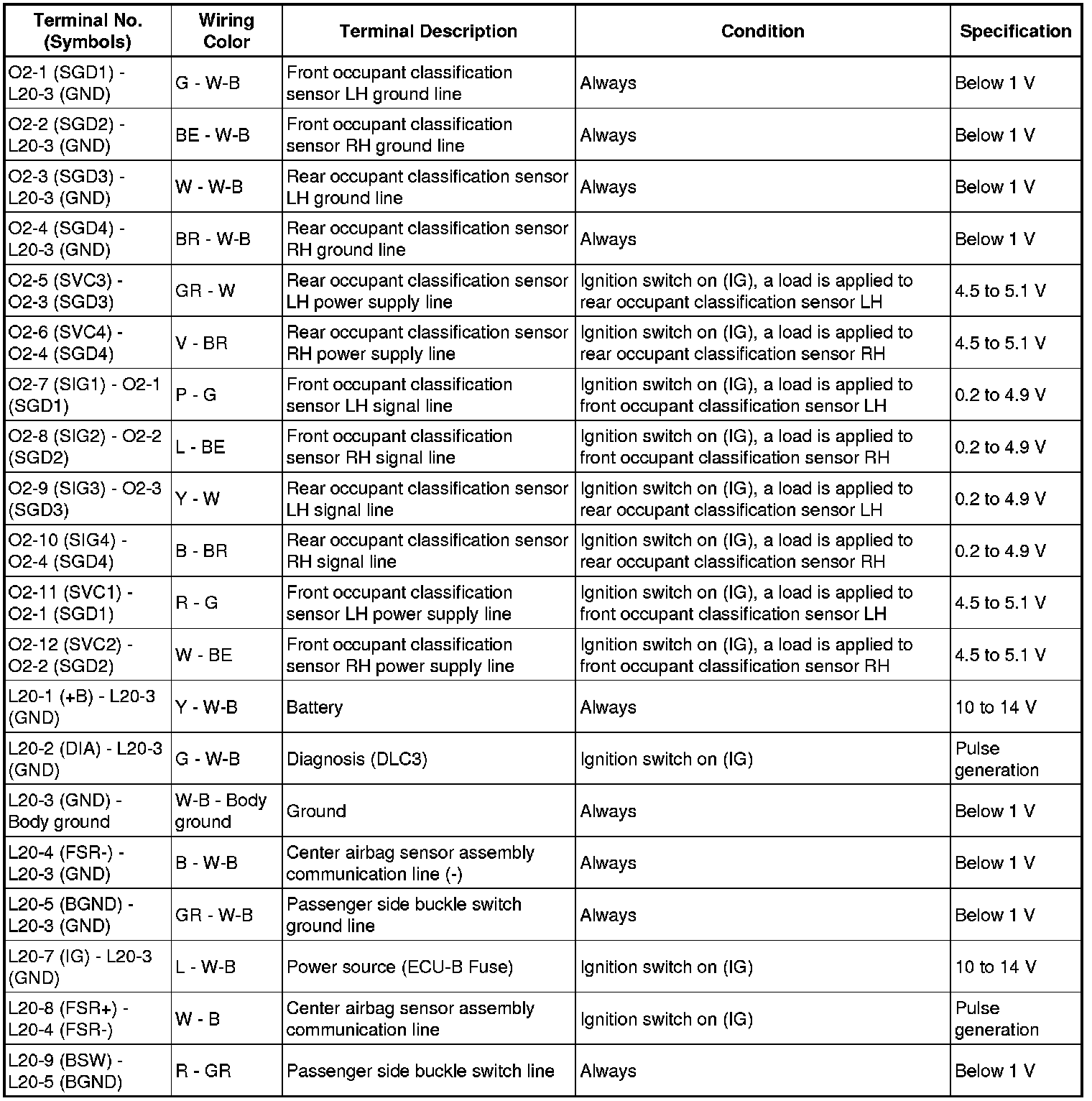

2. OCCUPANT CLASSIFICATION ECU (for Manual seat)
SUPPLEMENTAL RESTRAINT SYSTEM: OCCUPANT CLASSIFICATION SYSTEM: TERMINALS OF ECU
TERMINALS OF ECU
1. OCCUPANT CLASSIFICATION ECU (for Power seat)
2. OCCUPANT CLASSIFICATION ECU (for Manual seat)
