Removal

AUDIO / VISUAL: STEERING PAD SWITCH: REMOVAL

REMOVAL

1. TABLE OF BOLT, SCREW AND NUT Removal
2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
Wait for 90 seconds after disconnecting the cable to prevent the airbag working.
3. REMOVE STEERING WHEEL COVER LOWER NO. 2 Removal
4. REMOVE STEERING WHEEL COVER LOWER NO. 3 Removal
5. REMOVE STEERING PAD Removal

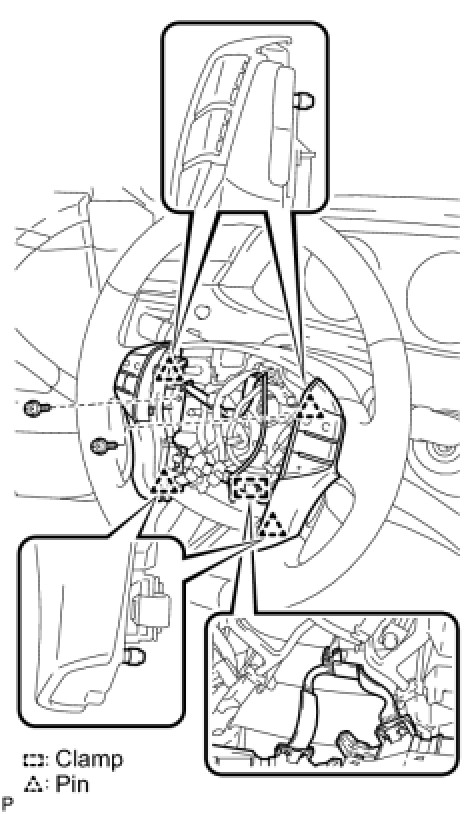

6. REMOVE STEERING PAD SWITCH ASSEMBLY





(a) Disconnect the connector.
(b) Remove the 2 screws and remove the clamp.
(c) Disengage the 4 pins and remove the steering pad switch assembly.
