Installation

CRUISE CONTROL: LASER SENSOR: INSTALLATION

INSTALLATION

1. INSTALL LASER SENSOR

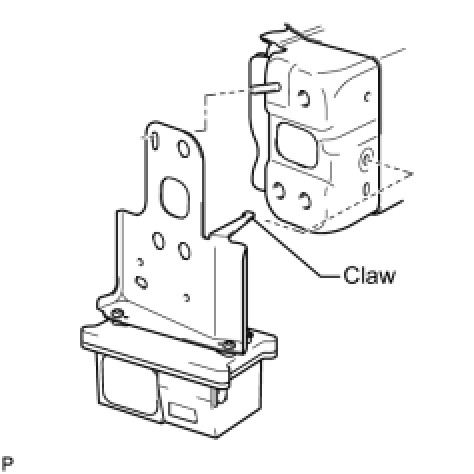

(a) Install the laser sensor so that the claw contacts the flat surface around the hole on the front bumper mounting reinforcement.

NOTE: Do not insert the claw into the hole on the front bumper mounting reinforcement.

(b) Engage the clamp.
(c) Connect the connector.
2. INSTALL FRONT BUMPER REINFORCEMENT Installation
3. INSTALL FRONT BUMPER ENERGY ABSORBER Installation
4. INSTALL FRONT BUMPER ASSEMBLY (w/o Fog Light) Installation
5. INSTALL FRONT BUMPER ASSEMBLY (w/ Fog Light) Installation
6. INSTALL RADIATOR GRILLE SUB-ASSEMBLY Installation
7. INSTALL COOL AIR INTAKE DUCT SEAL Installation
8. VEHICLE PREPARATION FOR FOG LIGHT AIMING ADJUSTMENT (w/ Fog Light) Adjustments
9. PREPARATION FOR FOG LIGHT AIMING (w/ Fog Light) Adjustments
10. INSPECT FOG LIGHT AIMING (w/ Fog Light) Adjustments
11. ADJUST FOG LIGHT AIMING (w/ Fog Light) Adjustments
12. ADJUST LASER SENSOR Adjustments
