Removal

CRUISE CONTROL: CRUISE CONTROL MAIN SWITCH: REMOVAL

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait for 90 seconds after disconnecting the cable to prevent the airbag working Service Precautions.

2. REMOVE STEERING WHEEL NO. 3 COVER LOWER Removal
3. REMOVE STEERING WHEEL NO. 2 COVER LOWER Removal
4. REMOVE STEERING PAD Removal
5. REMOVE CRUISE CONTROL MAIN SWITCH

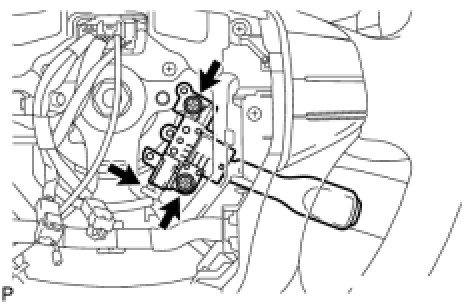

(a) Disconnect the connector.
(b) Remove the 2 screws.

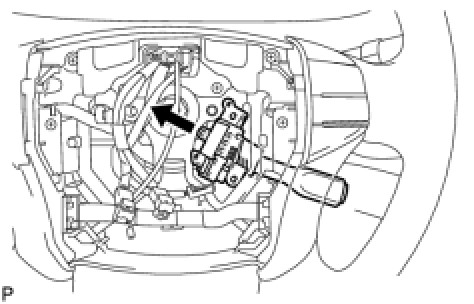

(c) Pull out the cruise control main switch assembly in the direction shown by the arrow in the illustration.
