Rear Door Courtesy Switch








LIGHTING: REAR DOOR COURTESY SWITCH: INSPECTION

INSPECTION

1. INSPECT REAR DOOR COURTESY LIGHT SWITCH
(a) Measure the resistance according to the value(s) in the table below.

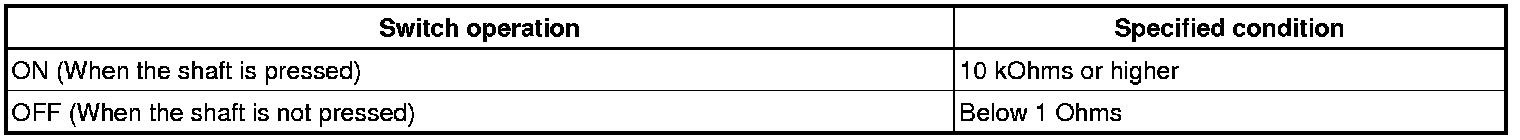

Standard resistance:
