Brake Light Switch: Testing and Inspection

LIGHTING: STOP LIGHT SWITCH: INSPECTION

INSPECTION

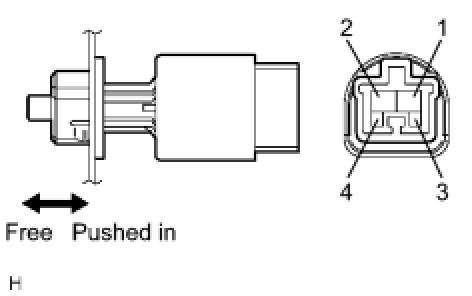

1. INSPECT STOP LIGHT SWITCH ASSEMBLY





(a) Inspect the stop light switch assembly.
(1) Measure the resistance according to the value(s) in the table below.

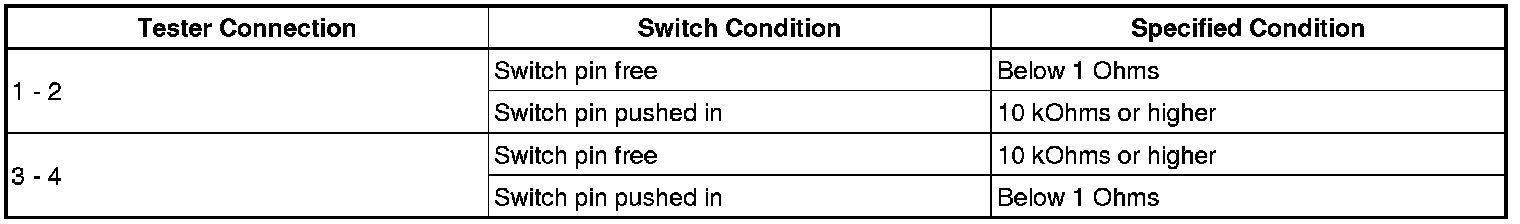

Standard resistance:
