Diesel Data
: Automotive Repair
Home
>>
Toyota
>>
2009
>>
Avalon V6-3.5L (2GR-FE)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Charging System
>>
Specifications
>>
Electrical Specifications
>>
Charging
Charging

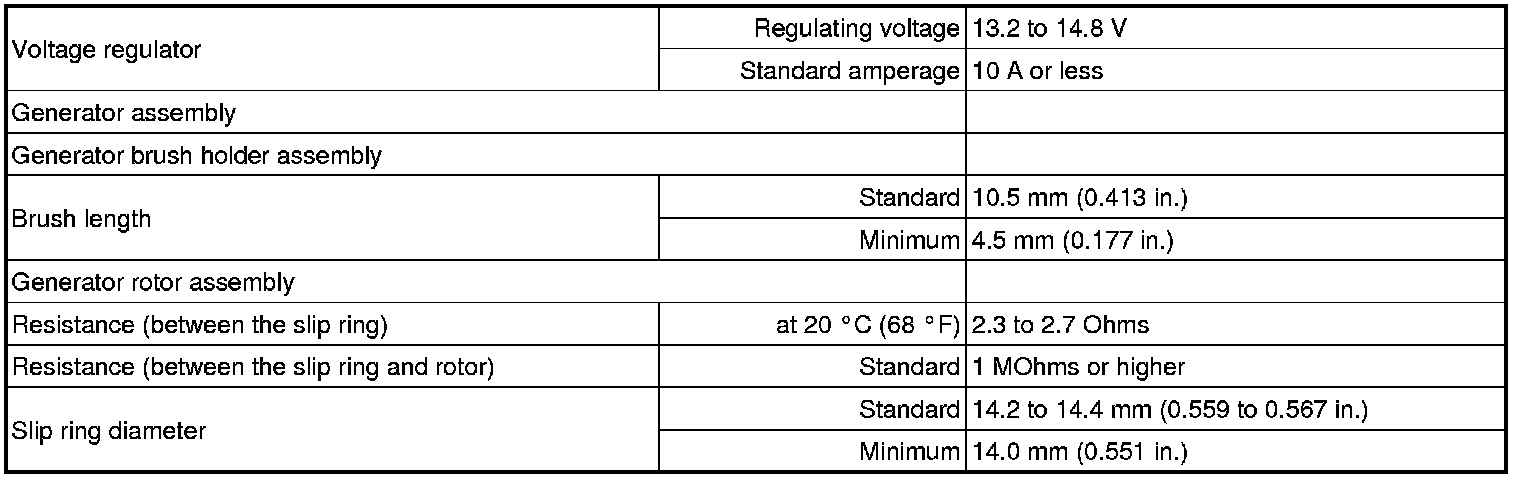

SERVICE SPECIFICATIONS: 2GR-FE CHARGING: SERVICE DATA
SERVICE DATA
