Symptom Related Diagnostic Procedures

2GR-FE STARTING: SMART KEY SYSTEM: PROBLEM SYMPTOMS TABLE

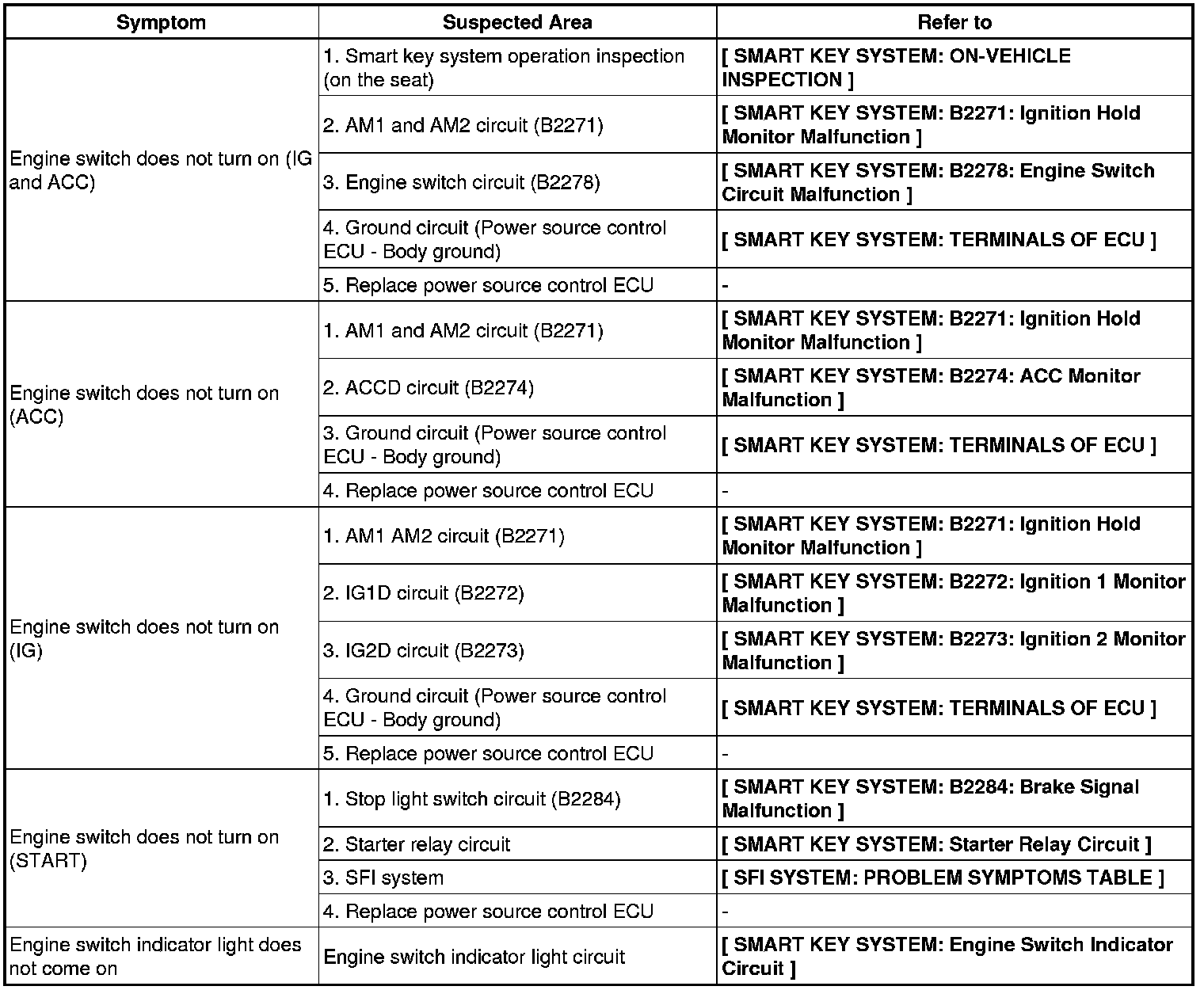

PROBLEM SYMPTOMS TABLE

HINT: If a normal system code is displayed during the DTC check but the problem still occurs, check the circuits for each problem symptom in the order given in the table below.

SMART KEY SYSTEM
