Installation

POWER STEERING: VANE PUMP: INSTALLATION

INSTALLATION

1. INSTALL VANE PUMP ASSEMBLY





(a) Install the vane pump assembly with the 2 bolts.
Torque: 43 Nm (439 kgf-cm, 32 ft-lbf)





(b) Connect the connector to the power steering oil pressure switch.
2. CONNECT PRESSURE FEED TUBE ASSEMBLY





(a) Install a new gasket to the pressure feed tube assembly.
(b) Connect the pressure feed tube assembly to the vane pump assembly with the union bolt
Torque: 52 Nm (525 kgf-cm, 38 ft-lbf)

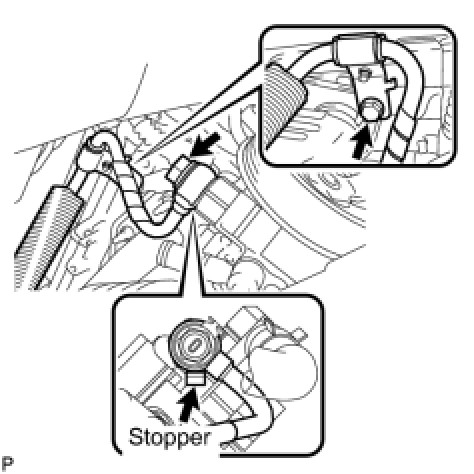

HINT: Make sure that the stopper of the pressure feed tube assembly contacts the vane pump assembly as shown in the illustration, then tighten the union bolt.

(c) Install the pressure feed tube clamp with the bolt.
Torque: 9.8 Nm (100 kgf-cm, 87 in-lbf)
3. CONNECT OIL RESERVOIR TO PUMP HOSE NO.1

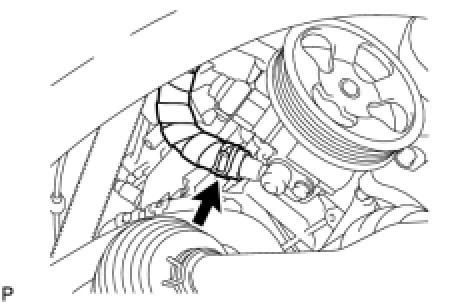

(a) Connect the oil reservoir to pump hose No.1 with the clip.
4. INSTALL FAN AND GENERATOR V BELT

HINT: Installation

5. INSTALL FRONT FENDER APRON SEAL RH
6. INSTALL FRONT WHEEL RH
7. BLEED POWER STEERING FLUID
8. INSPECT FOR POWER STEERING FLUID
