Reassembly

STEERING COLUMN: STEERING COLUMN ASSEMBLY: REASSEMBLY

REASSEMBLY

1. INSTALL IGNITION OR STARTER SWITCH ASSEMBLY

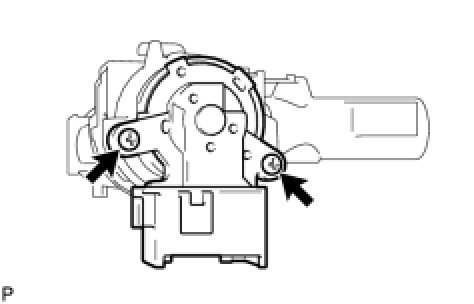

(a) Install the ignition or starter switch assembly to the steering column upper w/ switch bracket assembly with the 2 screws.
2. INSTALL KEY INTER LOCK SOLENOID

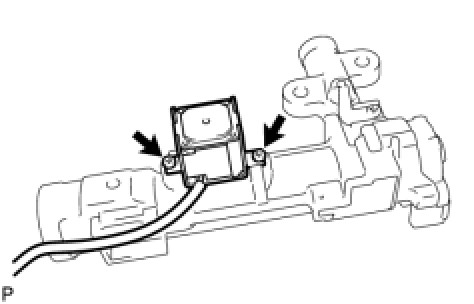

(a) Install the key inter lock solenoid to the steering column upper w/ switch bracket assembly with the 2 screws.
3. INSTALL UN-LOCK WARNING SWITCH ASSEMBLY





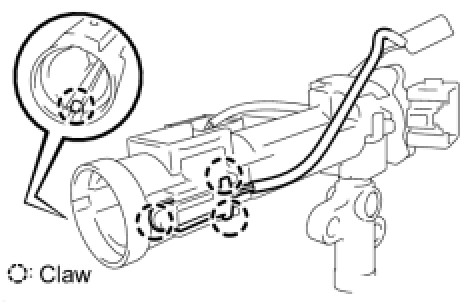

(a) Install the un-lock warning switch assembly.





(b) Connect terminals 3 and 4 of the un-lock warning switch assembly connector.

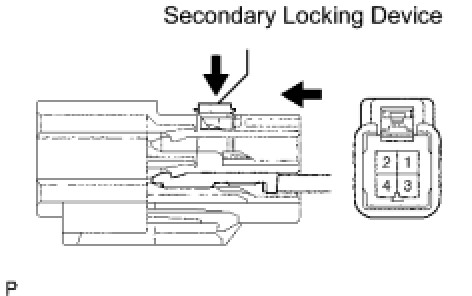

(c) Engage the secondary locking device.
(d) Connect the un-lock warning switch assembly connector to the ignition or starter switch assembly.
4. INSTALL IGNITION SWITCH LOCK CYLINDER ASSEMBLY

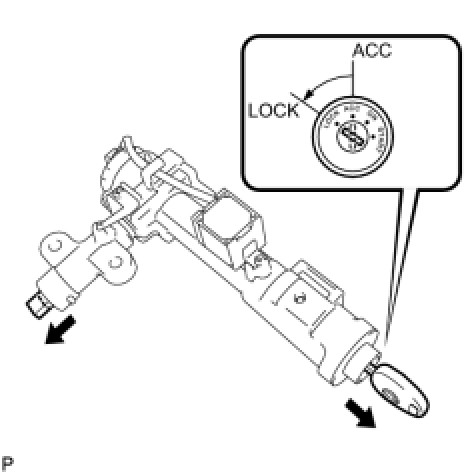

(a) Make sure the ignition switch lock cylinder assembly is in the ACC position.

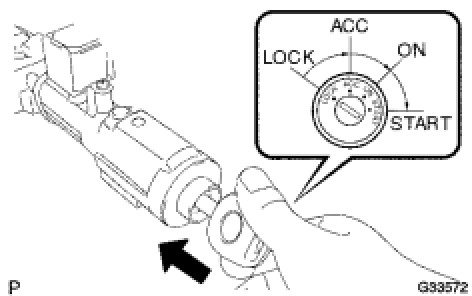

(b) Install the ignition switch lock cylinder assembly.
(c) Make sure that the ignition switch lock cylinder assembly is securely installed.
5. INSPECT STEERING LOCK OPERATION





(a) Check that the steering lock mechanism is activated when the key is removed.





(b) Check that the steering lock mechanism is deactivated when the key is inserted and turned to the ACC position.

HINT: If there is any abnormality, replace the ignition switch lock cylinder assembly.

6. INSTALL STEERING COLUMN UPPER WITH SWITCH BRACKET ASSEMBLY

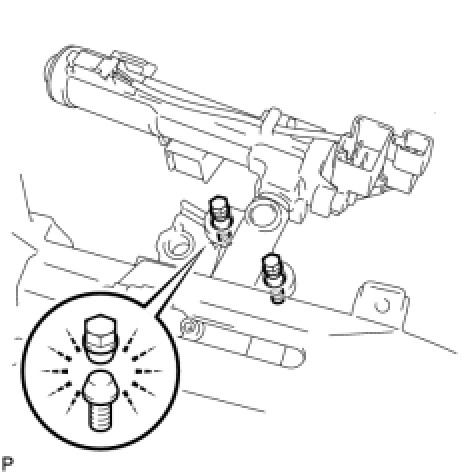

(a) Temporarily install the steering column upper w/ switch bracket assembly with 2 new tapered-head bolts.
(b) Tighten the 2 tapered-head bolts until the bolt heads break off.
7. INSTALL TRANSPONDER KEY AMPLIFIER

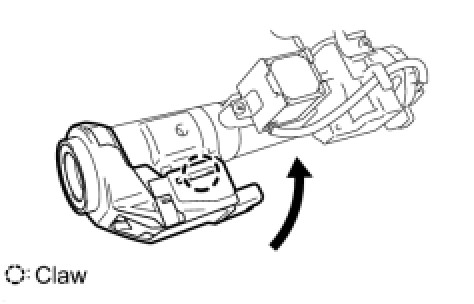

(a) Align the transponder key amplifier with the installation position of the upper bracket with the amplifier inclined.
(b) Push the transponder key amplifier up and install it to the upper bracket.

NOTE: Do not push the amplifier up with excessive force.

8. INSTALL STEERING LOCK ACTUATOR ASSEMBLY

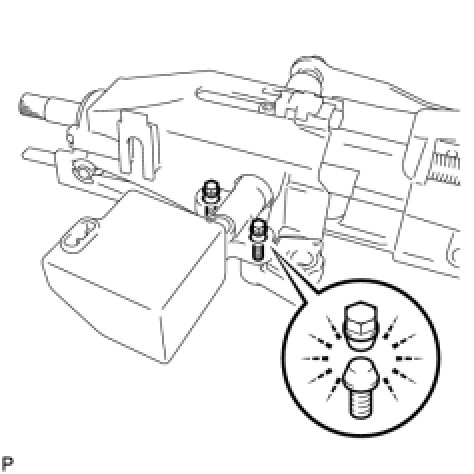

(a) Temporarily install the steering lock actuator assembly with 2 new tapered-head bolts.
(b) Tighten the 2 tapered-head bolts until the bolt heads break off.
