Pinout Values and Diagnostic Parameters

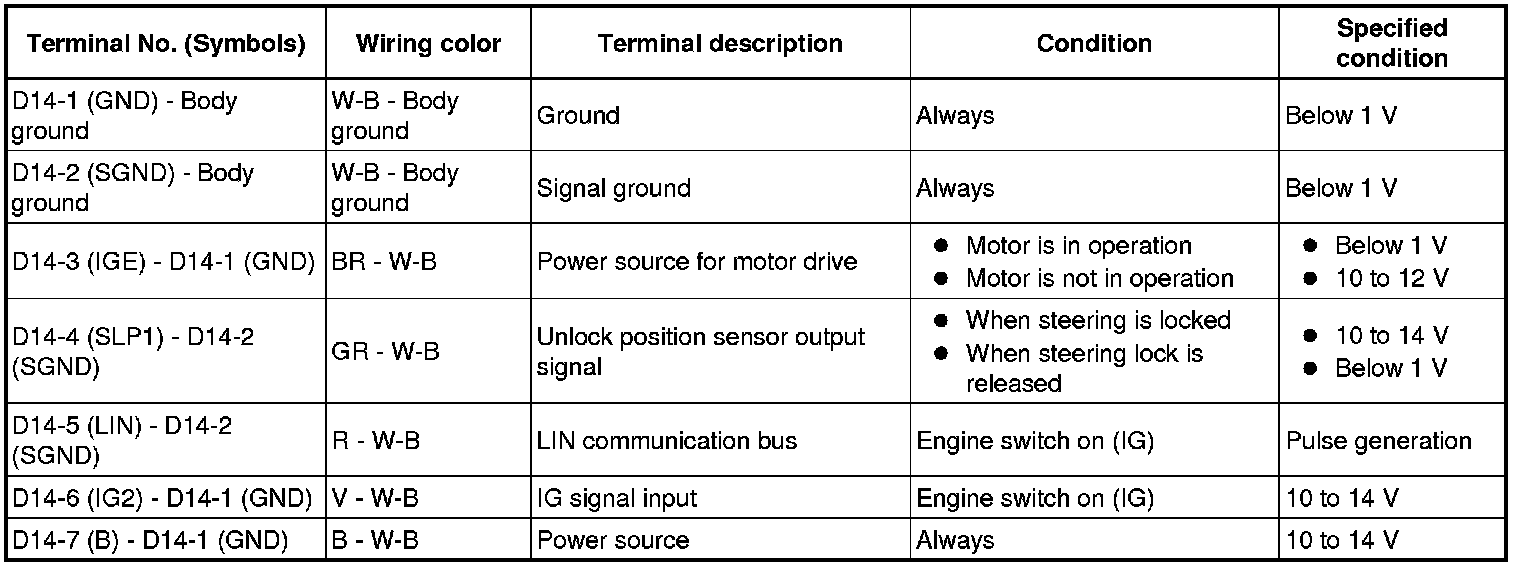

STEERING COLUMN: ELECTRIC STEERING LOCK: TERMINALS OF ECU

TERMINALS OF ECU

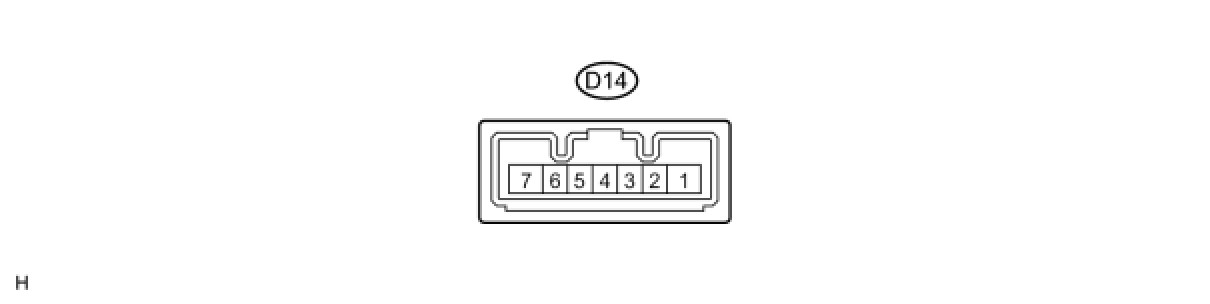

1. STEERING LOCK ACTUATOR ASSEMBLY (STEERING LOCK ECU)
