Symptom Related Diagnostic Procedures

STEERING COLUMN: ELECTRIC STEERING LOCK: PROBLEM SYMPTOMS TABLE

PROBLEM SYMPTOMS TABLE

HINT: Use the table below to help determine the cause of a problem. The likely causes of the problem are indicated in descending order. Check each suspected area in order. Repair or replace faulty parts or perform adjustments as necessary.

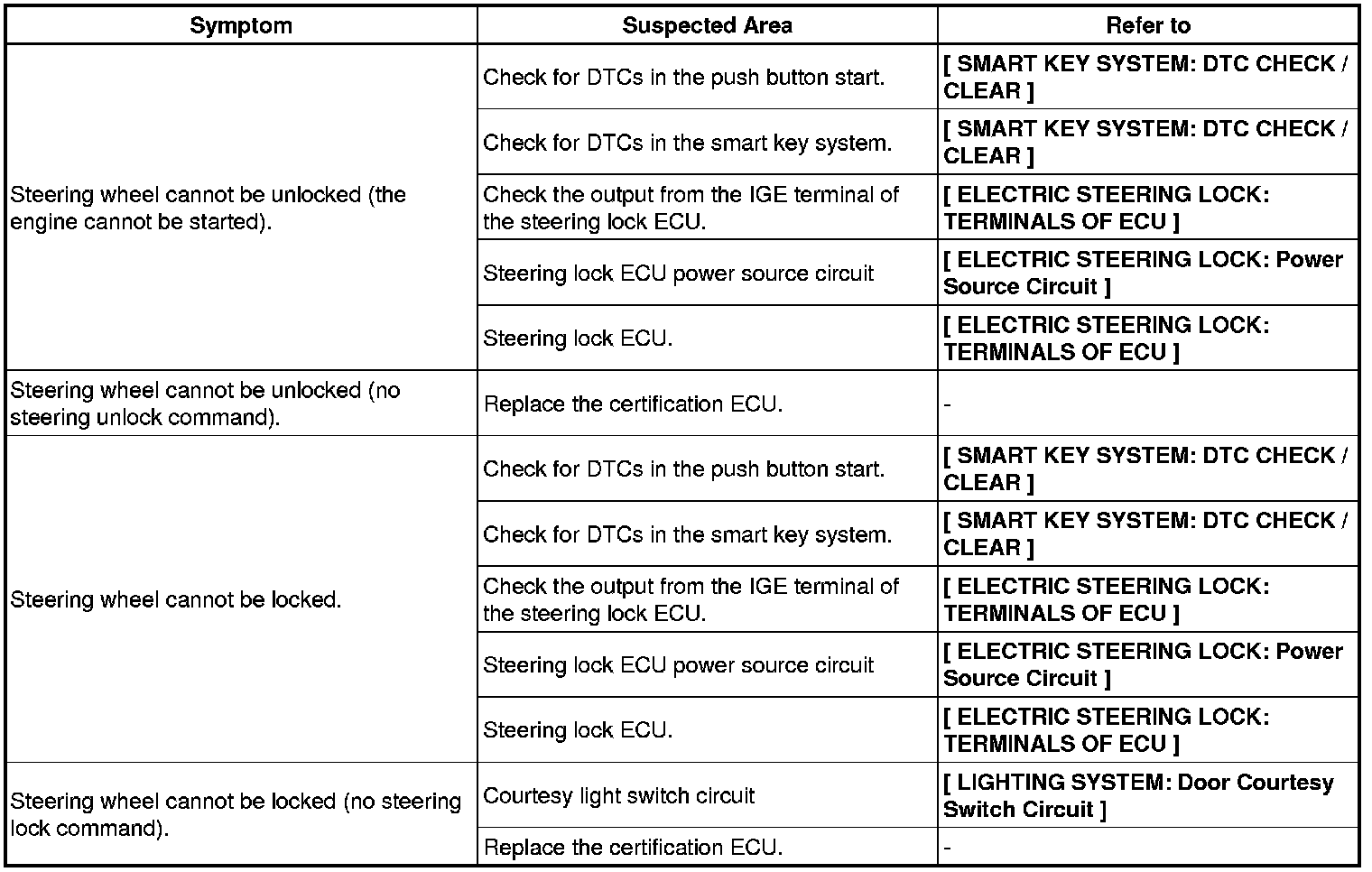

STEERING LOCK FUNCTION

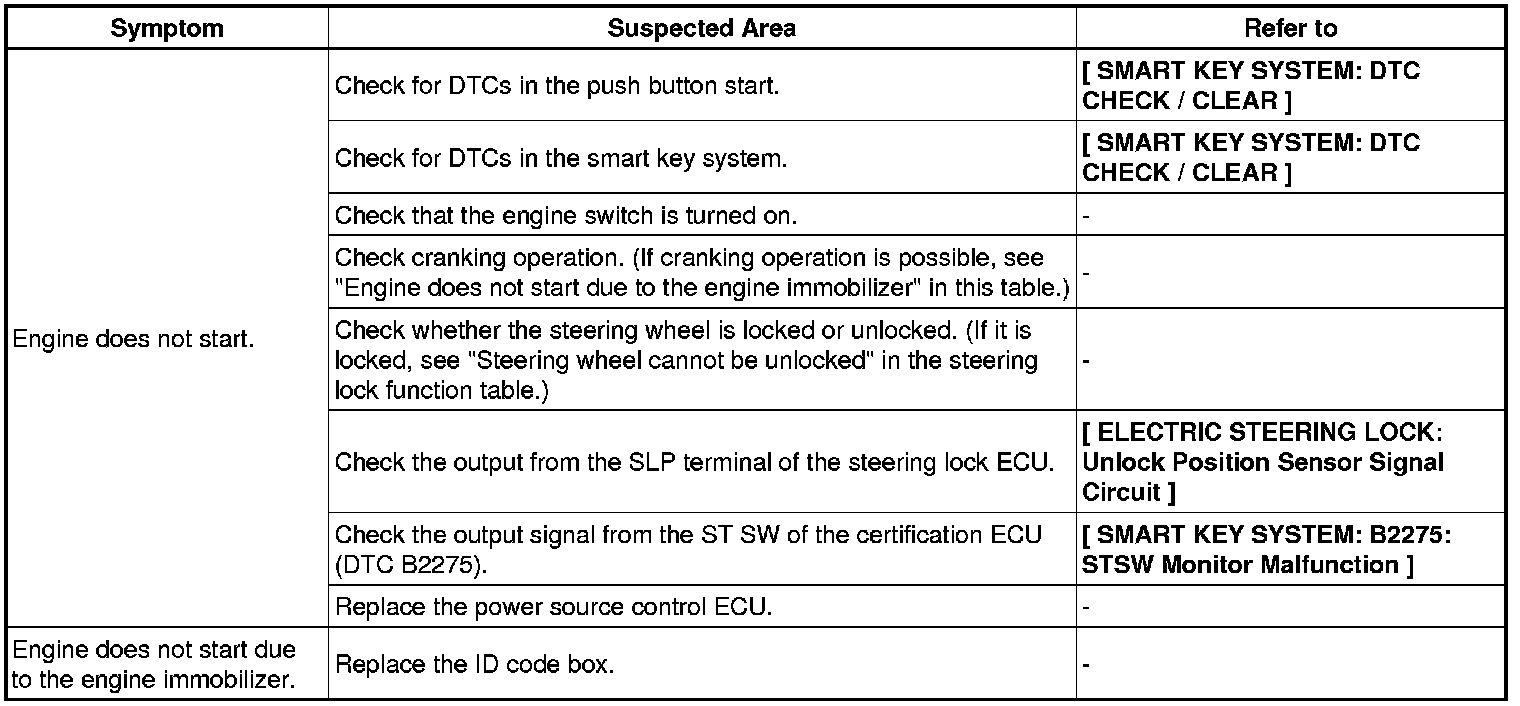

PUSH BUTTON START FUNCTION
