SUSPENSION: FRONT LOWER SUSPENSION ARM: INSTALLATION

INSTALLATION

1. INSTALL FRONT LOWER SUSPENSION ARM

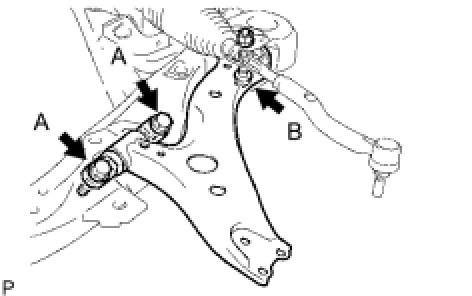

(a) Install the front lower arm bush stopper to the front suspension arm sub-assembly lower No. 1 LH.
(b) Install the 2 bolts on the front side of the front suspension arm sub-assembly lower No. 1 LH.
Torque: 200 Nm (2,040 kgf-cm, 148 ft-lbf)bolt (A)
(c) Install the bolt and nut on the rear side of the front suspension arm sub-assembly lower No. 1 LH.
Torque: 206 Nm (2,100 kgf-cm, 152 ft-lbf)bolt (B)
2. INSTALL TRANSVERSE ENGINE ENGINE MOUNTING INSULATOR

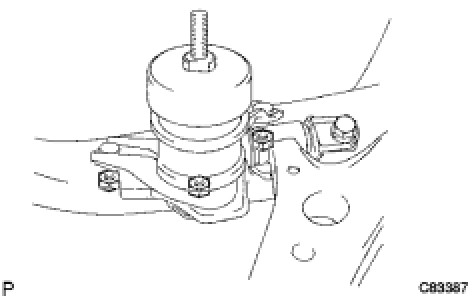

(a) Install the transverse engine mounting insulator with the 3 nuts.
3. INSTALL ENGINE ASSEMBLY WITH TRANSAXLE
(a) Install the engine assembly with transaxle Installation.
