Removal

SUSPENSION: REAR NO. 1 SUSPENSION ARM: REMOVAL

REMOVAL

HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.

1. REMOVE REAR WHEEL
2. REMOVE EXHAUST PIPE ASSEMBLY CENTER
(a) Remove the exhaust pipe assembly center Removal.
3. REMOVE REAR STABILIZER BAR
(a) Remove the rear stabilizer bar Removal.
4. REMOVE REAR STRUT ROD
(a) Remove the rear strut rod Removal.

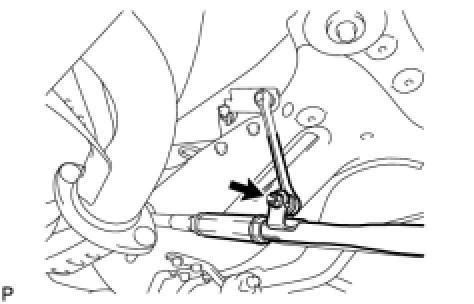

5. SEPARATE HEIGHT CONTROL SENSOR SUB-ASSEMBLY REAR RH (WITH DISCHARGE HEAD LIGHT)





(a) The height control sensor sub-assembly rear (with discharge heard light) is on the RH side only. Remove the nut, and separate the height control sensor sub-assembly rear RH.

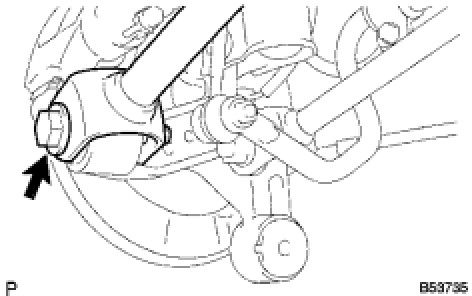

6. SEPARATE REAR NO. 2 SUSPENSION ARM LH





(a) Remove the bolt, nut and the rear suspension arm No. 2 (outer side) from the rear axle carrier.

NOTE: When removing the bolt, keep the nut from rotating.

7. SEPARATE REAR NO. 2 SUSPENSION ARM RH

HINT: Separate the RH side using the same procedures as for the LH side.

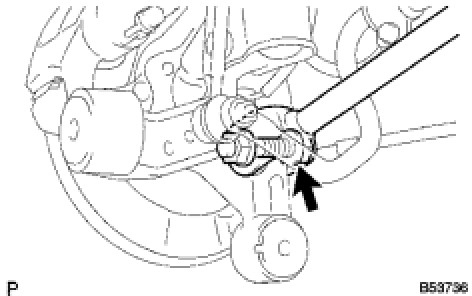

8. SEPARATE REAR NO. 1 SUSPENSION ARM LH





(a) Remove the bolt, nut and the rear suspension arm No. 1 (outer side) from the rear axle carrier.

NOTE: When removing the bolt, keep the nut from rotating.

9. SEPARATE REAR NO. 1 SUSPENSION ARM RH

HINT: Separate the RH side using the same procedures as for the LH side.

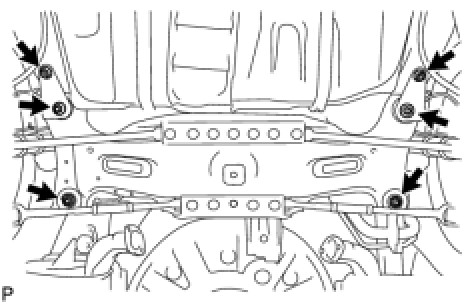

10. REMOVE REAR SUSPENSION MEMBER SUB-ASSEMBLY





(a) Support the rear suspension member with a jack.
(b) Remove the 4 nuts, 2 bolts and 4 retainers from the rear suspension member.
(c) Lower the rear suspension member.

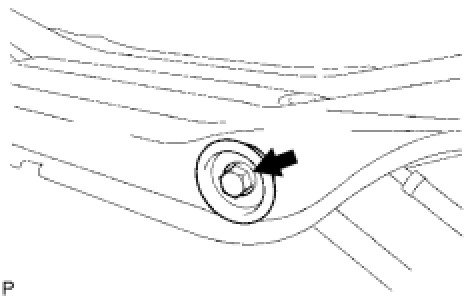

11. REMOVE REAR NO. 1 SUSPENSION ARM





(a) Remove the bolt and rear suspension arm No. 1.
