Installation

SUSPENSION: REAR NO. 2 SUSPENSION ARM: INSTALLATION

INSTALLATION

1. INSTALL REAR NO. 2 SUSPENSION ARM





(a) Install the rear suspension arm No. 2 (inner side) with the bolt.
Torque: 100 Nm (1,020 kgf-cm, 74 ft-lbf)





(b) Install the rear suspension arm No. 2 (inner side) with the bolt.

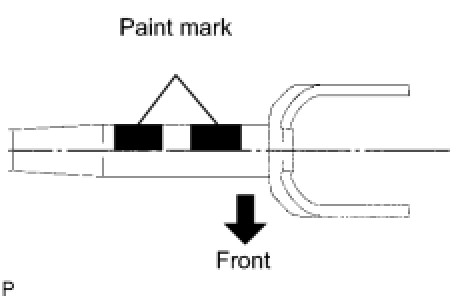

HINT: Ensure that the paint marks face the rear side of the vehicle.

2. INSTALL REAR SUSPENSION MEMBER SUB-ASSEMBLY
(a) Install the rear suspension member sub-assembly Installation.
3. TEMPORARILY TIGHTEN REAR NO. 1 SUSPENSION ARM LH
4. TEMPORARILY TIGHTEN REAR NO. 1 SUSPENSION ARM RH

HINT: Temporarily tighten the RH side using the same procedures as for the LH side.

5. TEMPORARILY TIGHTEN REAR NO. 2 SUSPENSION ARM LH
(a) Temporarily tighten the rear no. 2 suspension arm LH Installation.
6. TEMPORARILY TIGHTEN REAR NO. 2 SUSPENSION ARM RH

HINT: Temporarily tighten the RH side using the same procedures as for the LH side.

7. TEMPORARILY TIGHTEN REAR STRUT ROD
(a) Temporarily tighten the rear strut rod Installation.
8. STABILIZE SUSPENSION
(a) Stabilizer the suspension Installation.
9. FULLY TIGHTEN REAR NO. 1 SUSPENSION ARM LH
(a) Fully tighten the rear No. 1 suspension arm LH Installation.
10. FULLY TIGHTEN REAR NO. 1 SUSPENSION ARM RH

HINT: Fully tighten the RH side using the same procedures as for the LH side.

11. FULLY TIGHTEN REAR NO. 2 SUSPENSION ARM LH
(a) Fully tighten the rear No. 2 suspension arm LH Installation.
12. FULLY TIGHTEN REAR NO. 2 SUSPENSION ARM RH

HINT: Fully tighten the RH side using the same procedures as for the LH side.

13. FULLY TIGHTEN REAR STRUT ROD
(a) Fully tighten the rear strut rod Installation.
14. INSTALL REAR STABILIZER BAR
(a) Install the rear stabilizer bar Installation.
15. INSTALL HEIGHT CONTROL SENSOR SUB-ASSEMBLY REAR RH (WITH DISCHARGE HEAD LIGHT)
(a) Install the height control sensor sub-assembly rear RH Installation.
16. INSTALL EXHAUST PIPE ASSEMBLY CENTER
(a) Install the exhaust pipe assembly center Installation.
17. INSTALL REAR WHEEL
Torque: 103 Nm (1,050 kgf-cm, 76 ft-lbf)
18. INSPECT AND ADJUST REAR WHEEL ALIGNMENT
(a) Inspect and adjust the rear wheel alignment Service and Repair.
19. HEAD LIGHT AIMING ADJUSTMENT (WITH DISCHARGE HEAD LIGHT)
(a) Adjust the head light aiming Adjustments.
