SUSPENSION: REAR NO. 2 SUSPENSION ARM: REMOVAL

REMOVAL

HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.

1. REMOVE REAR WHEEL
2. REMOVE EXHAUST PIPE ASSEMBLY CENTER
(a) Remove the exhaust pipe assembly center Removal.
3. REMOVE REAR STABILIZER BAR
(a) Remove the rear stabilizer bar Removal.
4. REMOVE REAR STRUT ROD
(a) Remove the rear strut rod Removal.
5. SEPARATE HEIGHT CONTROL SENSOR SUB-ASSEMBLY REAR RH (WITH DISCHARGE HEAD LIGHT)
(a) Separate height control sensor sub-assembly rear RH Removal.
6. SEPARATE REAR NO. 1 SUSPENSION ARM LH
(a) Separate rear No. 1 suspension arm LH Removal.
7. SEPARATE REAR NO. 1 SUSPENSION ARM RH

HINT: Separate the RH side using the same procedures as for the LH side.

8. SEPARATE REAR NO. 2 SUSPENSION ARM LH
(a) Separate rear No. 2 suspension arm LH Removal.
9. SEPARATE REAR NO. 2 SUSPENSION ARM RH

HINT: Separate the RH side using the same procedures as for the LH side.

10. REMOVE REAR SUSPENSION MEMBER SUB-ASSEMBLY
(a) Remove the rear suspension member sub-assembly Removal.
11. REMOVE REAR NO. 2 SUSPENSION ARM

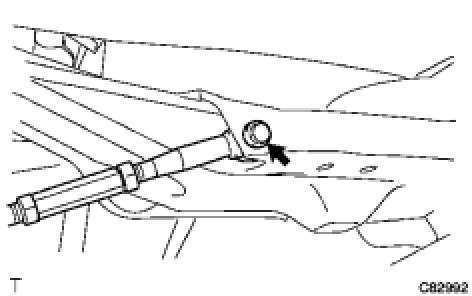

(a) Remove the bolt, and disconnect the rear suspension arm No. 2 (inner side).
