Installation

SUSPENSION: REAR STABILIZER BAR: INSTALLATION

INSTALLATION

1. INSTALL REAR STABILIZER BUSHING

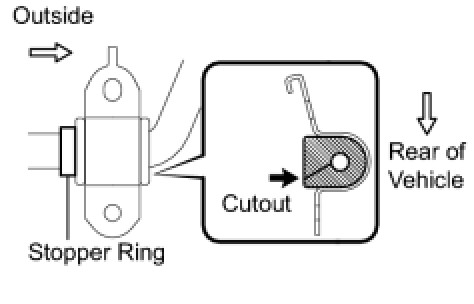

(a) Install the 2 rear stabilizer bushings to the outside of the stopper ring on the stabilizer bar as shown in the illustration.
2. INSTALL NO. 2 REAR STABILIZER BAR BRACKET
(a) Install the No. 2 rear stabilizer bar bracket.
3. INSTALL NO. 1 REAR STABILIZER BAR BRACKET
(a) Install the No. 1 rear stabilizer bar bracket.
4. INSTALL REAR STABILIZER BAR





(a) Install the rear stabilizer bar with the 2 bolts. (LH Side)
Torque: 31 Nm (316 kgf-cm, 23 ft-lbf)





(b) Install the rear stabilizer bar with the 2 bolts. (RH Side)
Torque: 31 Nm (316 kgf-cm, 23 ft-lbf)
5. INSTALL REAR STABILIZER LINK ASSEMBLY LH





(a) Connect the rear stabilizer link assembly LH with the nut.
Torque: 39 Nm (400 kgf-cm, 29 ft-lbf)

HINT: If the ball joint turns together with the nut, use a hexagon wrench (5 mm) to hold the stud.

6. INSTALL REAR STABILIZER LINK ASSEMBLY RH

HINT: Perform the same procedures as for the LH side.

7. INSTALL CENTER EXHAUST PIPE ASSEMBLY Installation
8. INSTALL REAR WHEELS
Torque: 103 Nm (1,050 kgf-cm, 76 ft-lbf)
9. INSPECT FOR EXHAUST GAS LEAK Installation
