Disposal

SUSPENSION: FRONT SHOCK ABSORBER WITH COIL SPRING: DISPOSAL

DISPOSAL

HINT: Dispose the RH side following the same procedures as with the LH side.

1. DISPOSE OF FRONT SHOCK ABSORBER





(a) Fully extend the shock absorber rod.

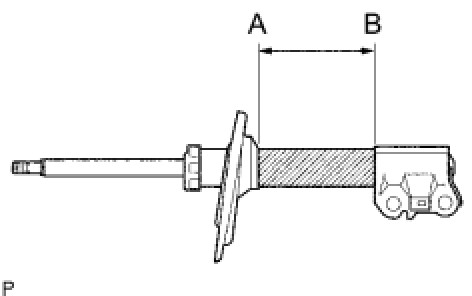

(b) Using a drill, make a hole in the cylinder between A and B as shown in the illustration to discharge the gas inside.

CAUTION:
- Be careful when drilling because shards of metal may fly about, so always use the proper safety equipment.
- The gas is colorless, odorless and non-poisonous.
