SUSPENSION: FRONT SHOCK ABSORBER WITH COIL SPRING: INSTALLATION

INSTALLATION

1. INSTALL FRONT SHOCK ABSORBER WITH COIL SPRING





(a) Install the front shock absorber with coil spring.

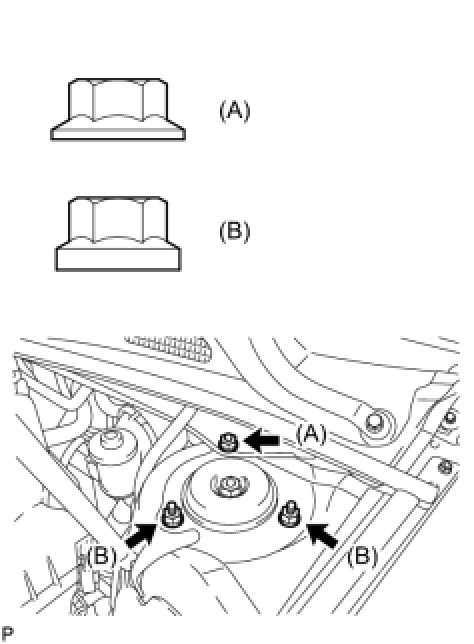

(b) Install the 3 nuts to the upper side of the front shock absorber with coil spring.
Torque: 85 Nm (867 kgf-cm, 63 ft-lbf)

NOTE: Be careful not to drop the collar in the case that there is front suspension upper brace center.

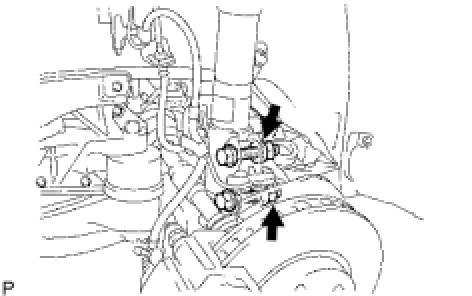

(c) Install the 2 bolts and 2 nuts to the lower side of the front shock absorber with coil spring.
Torque: 210 Nm (2,140 kgf-cm, 155 ft-lbf)

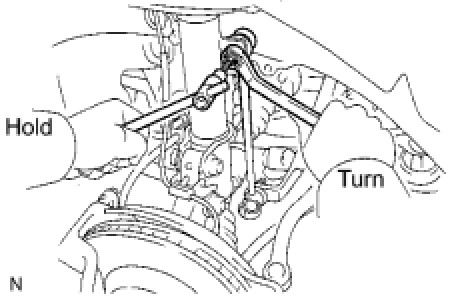

NOTE: Keep the bolts from rotating and torque the 2 nuts when installing the 2 nuts.

HINT: Insert the bolts from the front side of the vehicle.





(d) Fully tighten the lock nut.
Torque: 70 Nm (714 kgf-cm, 51 ft-lbf)





(e) Install the front flexible hose No. 1 and speed sensor front LH with the bolt.
Torque: 19 Nm (192 kgf-cm, 14 ft-lbf)
2. INSTALL FRONT STABILIZER LINK ASSEMBLY LH





(a) Install the front stabilizer link assembly LH with the nut.
Torque: 74 Nm (755 kgf-cm, 55 ft-lbf)

HINT: Use a hexagon (6 mm) wrench to hold the stud if the ball joint turns together with the nut.

3. INSTALL FRONT WHEEL
Torque: 103 Nm (1,050 kgf-cm, 76 ft-lbf)
4. INSPECT AND ADJUST FRONT WHEEL ALIGNMENT
(a) Inspect and adjust front wheel alignment Service and Repair.
