Installation

SUSPENSION: REAR SHOCK ABSORBER WITH COIL SPRING: INSTALLATION

INSTALLATION

1. INSTALL REAR SHOCK ABSORBER WITH COIL SPRING

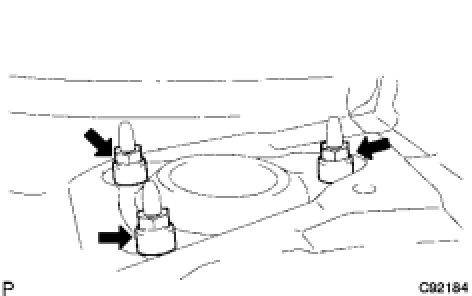

(a) Temporarily install the 3 nuts to the upper side of the rear shock absorber with coil spring.

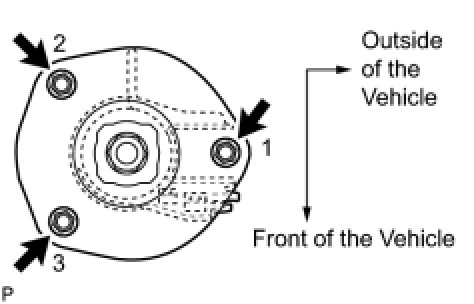

(b) Fully tighten the 3 nuts in order from 1 to 3.
Torque: 39 Nm (400 kgf-cm, 29 ft-lbf)

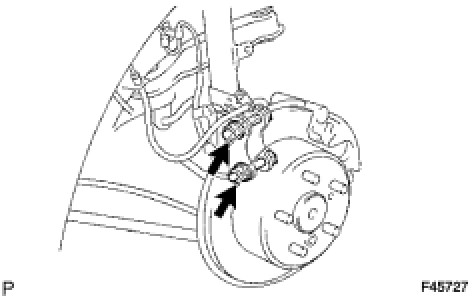

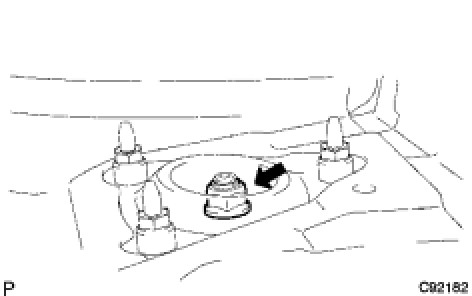

(d) Fully tighten the nut installed on the top of the shock absorber with coil spring.
Torque: 55 Nm (561 kgf-cm, 41 ft-lbf)

HINT: If the shock absorber has not been disassembled, it is not necessary to torque the nut.

(e) Install the rear suspension support No. 1 cover LH.
2. INSTALL FLEXIBLE HOSE

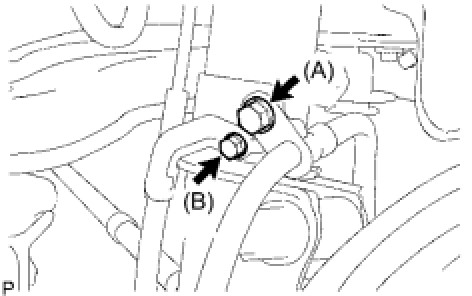

(a) Install the flexible hose and skid control sensor wire with the 2 bolts.
Bolt A - Torque: 19 Nm (195 kgf-cm, 14 ft-lbf)
Bolt B - Torque: 5.5 Nm (56 kgf-cm, 49 in-lbf)
3. INSTALL REAR STABILIZER LINK ASSEMBLY LH

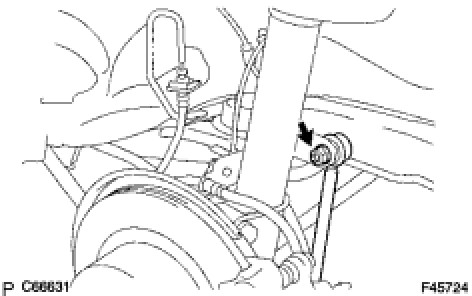

(a) Install the stabilizer link to the shock absorber with the nut.
Torque: 39 Nm (400 kgf-cm, 29 ft-lbf)

HINT: If the ball joint turns together with the nut, use a hexagon wrench (5 mm) to hold the stud.

4. INSTALL REAR WHEEL
Torque: 103 Nm (1,050 kgf-cm, 76 ft-lbf)
5. INSPECT AND ADJUST REAR WHEEL ALIGNMENT
(a) Inspect and adjust the rear wheel alignment Service and Repair.
