Disassembly

SUSPENSION: REAR SHOCK ABSORBER WITH COIL SPRING: DISASSEMBLY

DISASSEMBLY

1. FIX REAR SHOCK ABSORBER WITH COIL SPRING

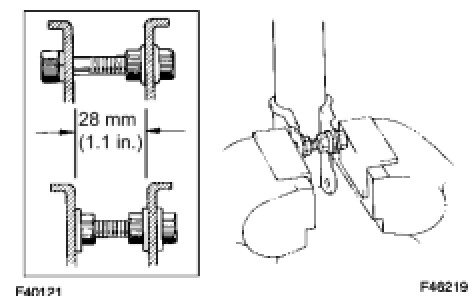

(a) Install the 2 nuts and bolt to the bracket at the lower part of the shock absorber, and secure it in a vise as shown in the illustration.
2. REMOVE REAR SHOCK ABSORBER

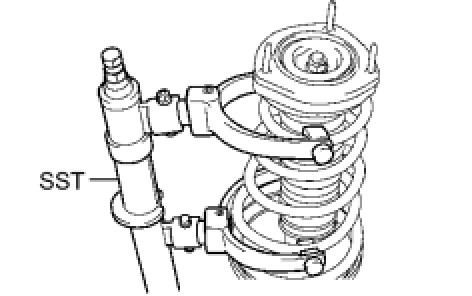

(a) Using SST, compress the coil spring.
SST: 09727-30021

NOTE: Do not use an impact wrench. It will damage SST.

(b) Remove the nut, collar and LH support suspension.
(c) Remove the coil spring, spring bumper and insulator lower.
