Disassembly

AXLE: FRONT AXLE HUB: DISASSEMBLY

DISASSEMBLY

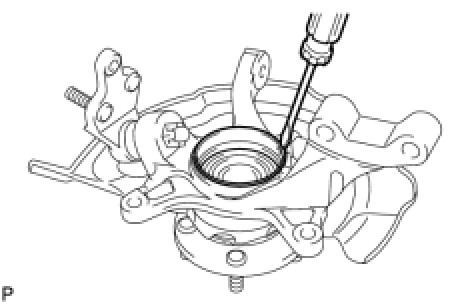

1. REMOVE FRONT WHEEL BEARING DUST DEFLECTOR NO.1 LH





(a) Using a screwdriver, remove the front wheel bearing dust deflector No.1 LH.

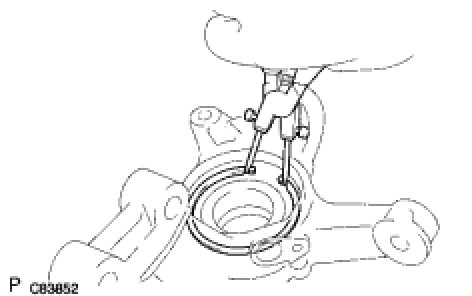

2. REMOVE FRONT AXLE HUB LH HOLE SNAP RING





(a) Using snap ring pliers, remove the front axle hub LH hole snap ring.

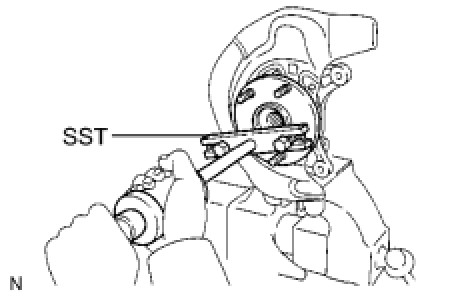

3. REMOVE FRONT AXLE HUB SUB-ASSEMBLY LH





(a) Using SST, remove the front axle hub sub-assembly LH.
SST: 09520-00031

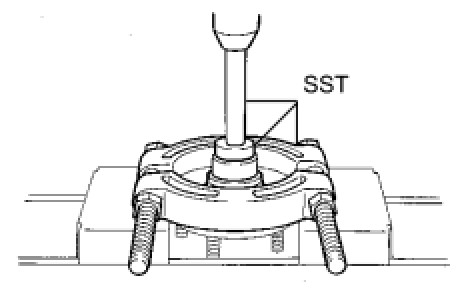

(b) Using SST and a press, remove the bearing inner race (outside) from the front axle hub sub-assembly LH.
SST: 09950-00020
SST: 09950-60010
09951-00430
SST: 09950-70010
09951-07100
4. REMOVE DISC BRAKE DUST COVER FRONT LH
(a) Using a torx wrench (T30), remove the 4 bolts and disc brake dust cover front LH.
5. REMOVE LOWER BALL JOINT ASSEMBLY FRONT LH Removal
6. REMOVE FRONT AXLE HUB LH BEARING
(a) Place the bearing inner race (outside) on the front axle hub LH bearing.

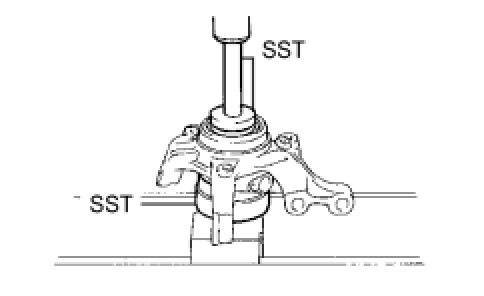

(b) Using SST and a press, press the front axle hub LH bearing until it comes into contact with the SST.
SST: 09527-17011
SST: 09950-60010
09951-00600
SST: 09950-70010
09951-07100

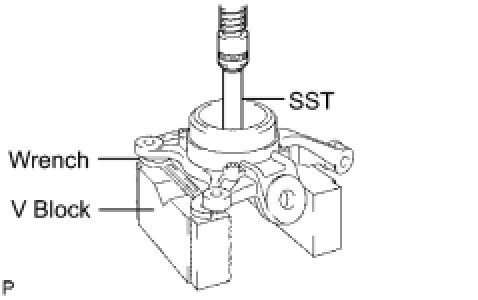

(c) Using a wrench to make the steering knuckle LH horizontal, fix it to the V block, as shown in the illustration.

NOTE: Be sure steering knuckle is horizontally positioned.

(d) Using SST and a press, remove the front axle hub LH bearing.
SST: 09950-60010
09951-00600
SST: 09950-70010
09951-07100
