Removal

AXLE: FRONT AXLE HUB BOLT: REMOVAL

REMOVAL

HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.

1. REMOVE FRONT WHEEL
2. SEPARATE FRONT DISC BRAKE CALIPER ASSEMBLY LH Removal
3. REMOVE FRONT DISC
4. REMOVE FRONT AXLE LH HUB BOLT

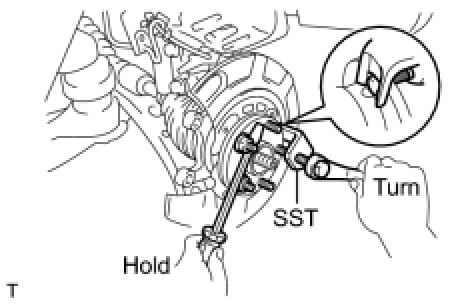

(a) Temporarily install the 2 nuts and 2 washers to the front axle LH hub bolts as shown in the illustration.
(b) Using SST and a screwdriver or an equivalent to hold the front axle, remove the front axle LH hub bolt.
SST: 09628-10011
