Installation

AXLE: REAR AXLE HUB BOLT: INSTALLATION

INSTALLATION

1. INSTALL REAR AXLE LH HUB BOLT

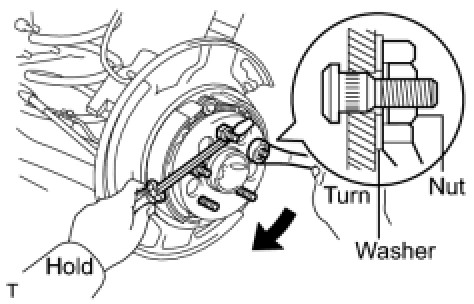

(a) Install a washer and nut to a new bolt, as shown in the illustration.
(b) Using a screwdriver or an equivalent to hold the hub & bearing assembly, install a new rear axle LH hub bolt by tightening the nut.
2. INSTALL REAR DISC
3. INSTALL REAR DISC BRAKE CALIPER ASSEMBLY LH Installation
4. INSTALL REAR WHEEL
