Removal

AXLE: REAR AXLE HUB BOLT: REMOVAL

REMOVAL

HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.

1. REMOVE REAR WHEEL
2. SEPARATE REAR DISC BRAKE CALIPER ASSEMBLY LH Removal
3. REMOVE REAR DISC
4. REMOVE REAR AXLE LH HUB BOLT

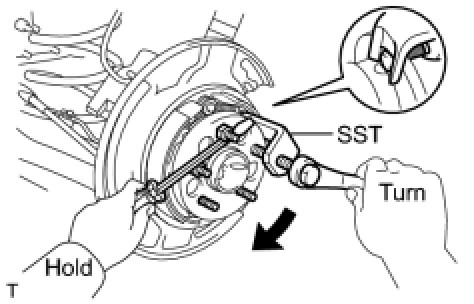

(a) Temporarily install the 2 nuts and 2 washers to the rear axle LH hub bolts as shown in the illustration.
(b) Using SST and a screwdriver or an equivalent to hold the hub & bearing assembly, remove the rear axle LH hub bolt.
SST: 09628-10011
