Reassembly

U660E AUTOMATIC TRANSAXLE: SHIFT LEVER: REASSEMBLY

REASSEMBLY

1. INSTALL SHIFT LOCK CONTROL ECU SUB-ASSEMBLY





(a) Install the shift lock control ECU sub-assembly.
(b) Connect the connector to the shift lock control ECU sub-assembly.
2. INSTALL INDICATOR LIGHT WIRE SUB-ASSEMBLY
(a) Securely connect the 2 terminals of the indicator light wire harness to the transmission control switch connector.




(1) w/o Smart Key System




(2) w/ Smart Key System

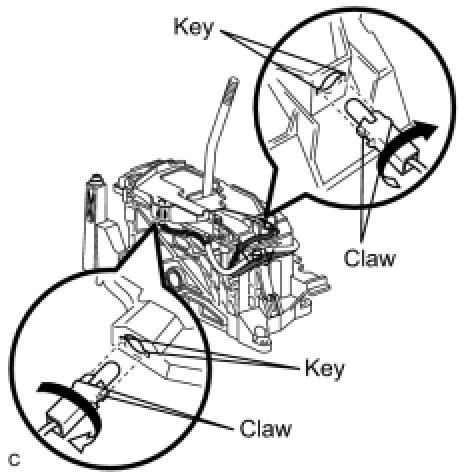

(b) Install the position indicator light bulb to the indicator light wire sub-assembly.
(c) Install the position indicator bulb cap to the position indicator light bulb.





(d) Install the transmission control switch connector.





(e) Install the indicator light wire sub-assembly to the transmission floor shift assembly.

NOTE: Make sure that the indicator light wire is securely installed to the transmission floor shift assembly.
