Installation

U660E AUTOMATIC TRANSAXLE: SHIFT LEVER: INSTALLATION

INSTALLATION

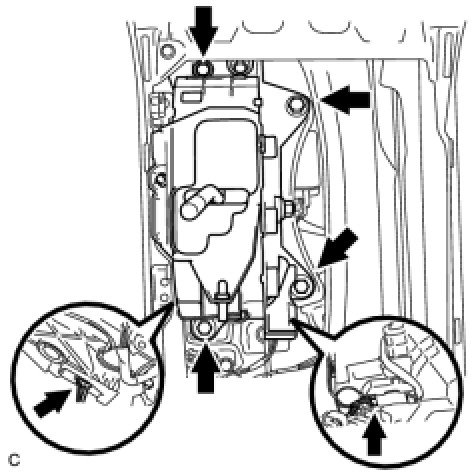

1. INSTALL TRANSMISSION FLOOR SHIFT ASSEMBLY





(a) Connect the 2 connectors and clamp to the transmission floor shift assembly.
(b) Install the transmission floor shift assembly with the 4 bolts.
Torque: 12 Nm (122 kgf-cm, 9 ft-lbf)

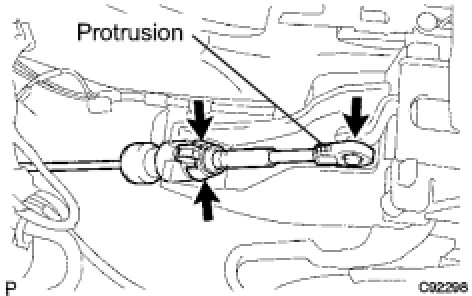

2. INSTALL TRANSMISSION CONTROL CABLE ASSEMBLY





(a) Connect the transmission control cable assembly to the transmission floor shift assembly.

HINT:
- Install it with the protrusion facing up.
- Securely engage the claws.

3. INSTALL CONSOLE BOX FRONT
4. INSTALL CONSOLE BOX ASSEMBLY
5. INSTALL CONSOLE BOX CARPET
6. INSTALL CONSOLE PANEL SUB-ASSEMBLY UPPER

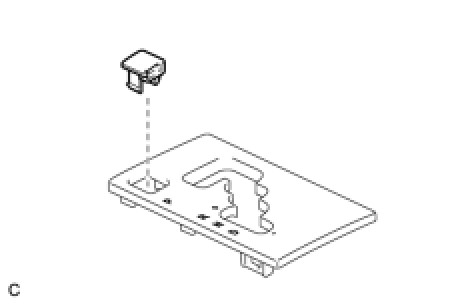

7. INSTALL SHIFT LOCK RELEASE BUTTON COVER





(a) Install the shift lock release button cover to the position indicator housing assembly.

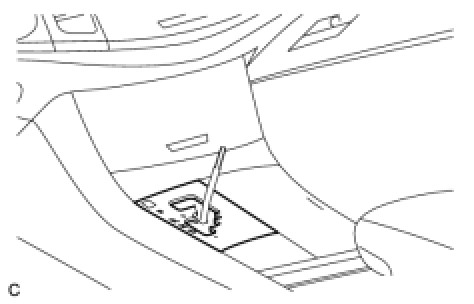

8. INSTALL POSITION INDICATOR HOUSING ASSEMBLY





(a) Install the position indicator housing assembly.

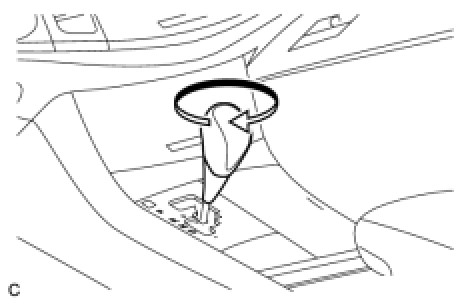

9. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY





(a) Install the shift lever knob sub-assembly to the transmission floor shift lever assembly.
10. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
11. INSPECT SHIFT LEVER POSITION Adjustments
12. ADJUST SHIFT LEVER POSITION Adjustments
13. PERFORM INITIALIZATION

HINT: Repair Instruction - Initialization.
