U660E AUTOMATIC TRANSAXLE: SHIFT LEVER: REMOVAL

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

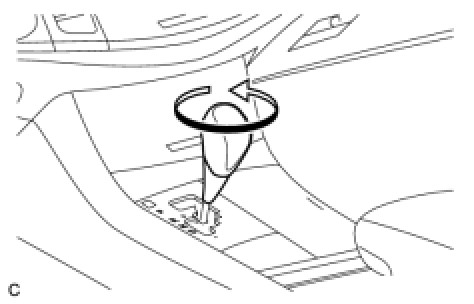

2. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY





(a) Shift lever into the N position.
(b) Remove the shift lever knob sub-assembly.
3. REMOVE POSITION INDICATOR HOUSING ASSEMBLY





(a) Remove the position indicator housing assembly, by carefully pulling up in the gate.

NOTE: Do not push down or damage the slide cover.

4. REMOVE SHIFT LOCK RELEASE BUTTON COVER





(a) Using a screwdriver, remove the shift lock release button cover from the position indicator housing assembly.
5. REMOVE CONSOLE PANEL SUB-ASSEMBLY UPPER Removal
6. REMOVE CONSOLE BOX CARPET
7. REMOVE CONSOLE BOX ASSEMBLY Removal
8. REMOVE CONSOLE BOX FRONT Removal

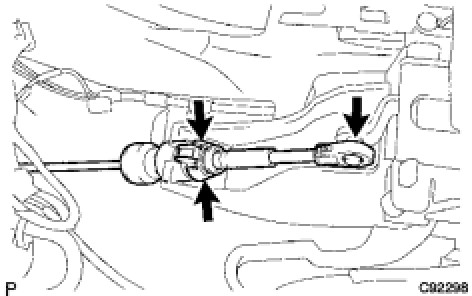

9. REMOVE TRANSMISSION CONTROL CABLE ASSEMBLY





(a) Disconnect the transmission control cable assembly from the transmission floor shift assembly.
10. REMOVE TRANSMISSION FLOOR SHIFT ASSEMBLY





(a) Remove the 4 bolts.
(b) Disconnect the 2 connectors and remove the transmission floor shift assembly.
