Body - Power Window Initialization Procedure

T-SB-0157-08

August 5, 2008

Initialization of Power Window During PDS

Service Category
General

Section
Pre-Delivery Service

Market
USA

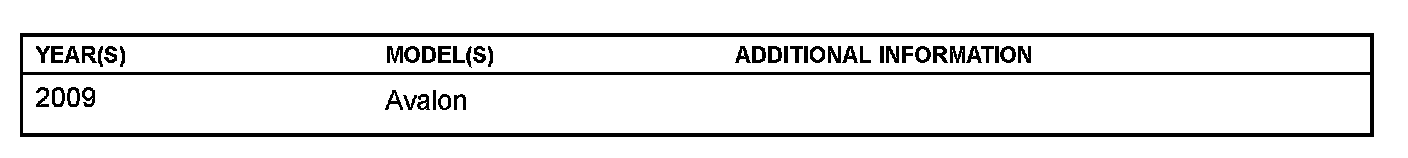

Applicability

Introduction

As a result of the removal of the Short Pin, the "one-touch open and close" and "jam protection" functions of the driver's and front passenger's door power window will be inoperative. This is due to a loss of power to the window position memory stored in the microcomputers for each door's power window switch.

Initialize the driver's door and front passenger's door power window after installing the Short Pin in its original location during Pre-Delivery Service (PDS).

NOTE
Any time the battery terminal has been disconnected, the driver's and front passenger's door power window MUST be re-initialized.

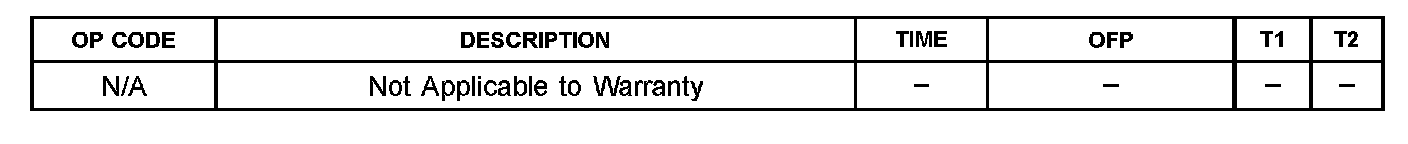

Warranty Information

Driver's Door Power Window Switch





1. Turn the ignition switch to the "IG-ON" position.

NOTE

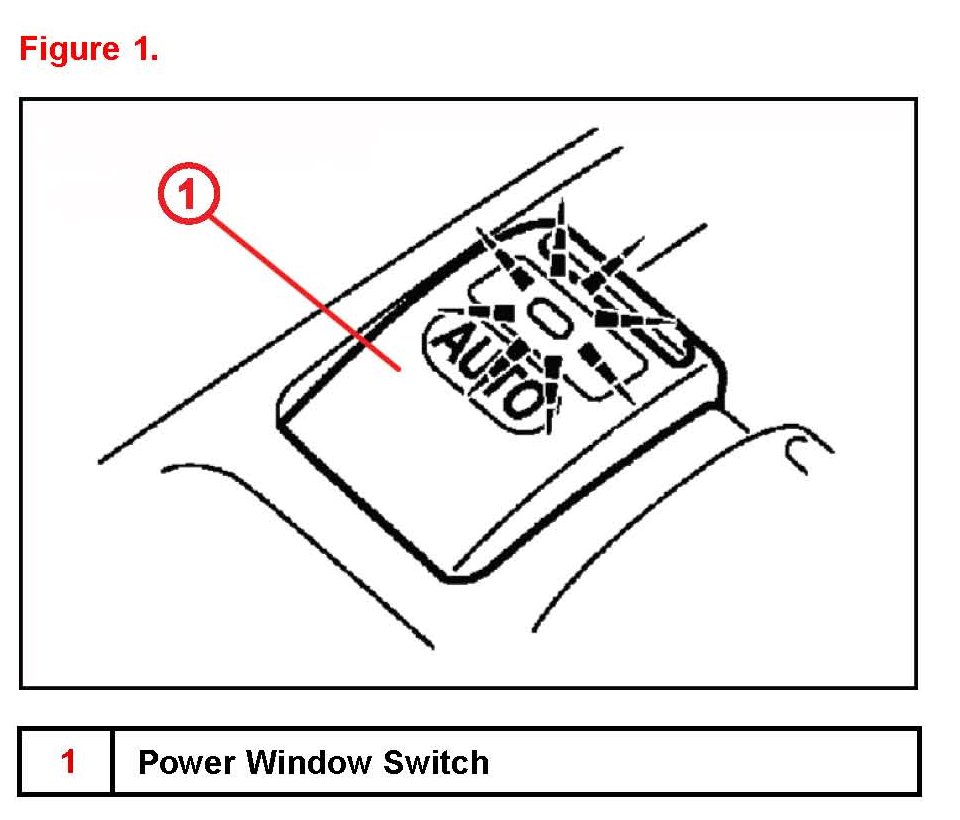

When not initialized, the power window switch for the driver's door window will blink.

2. Push down and hold the driver's door power window switch to completely open the window.

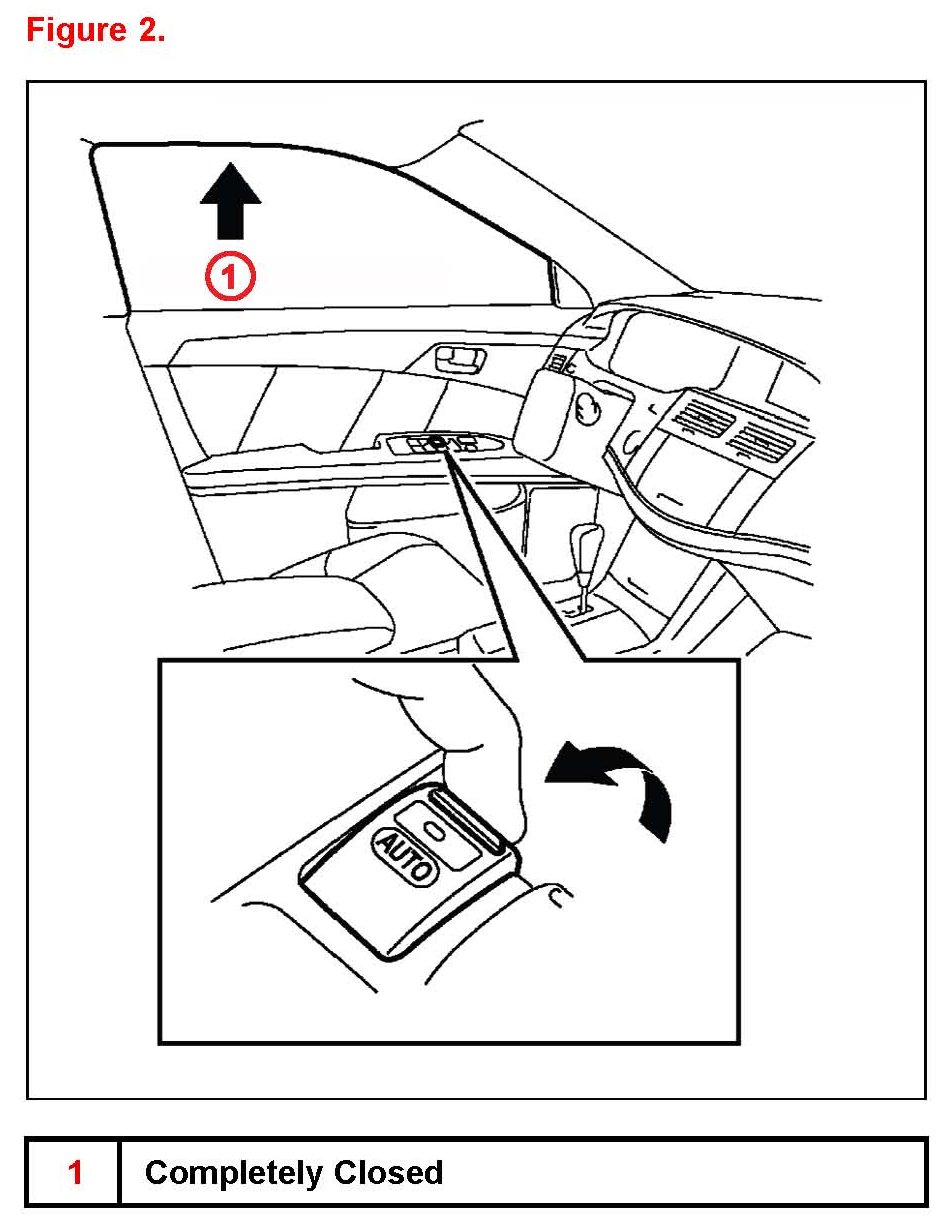

3. Pull and hold up the driver's door power window switch until the window closes. Continue holding the switch until the switch changes from blinking to a constant illumination.

4. Check for proper operation of the "one-touch open and close" function by fully pushing the switch briefly to the "DOWN" and "UP" positions.

NOTE
Jam protection function for the driver's window becomes effective through the above initialization procedure.

Passenger's Door Open Window Switch

NOTE

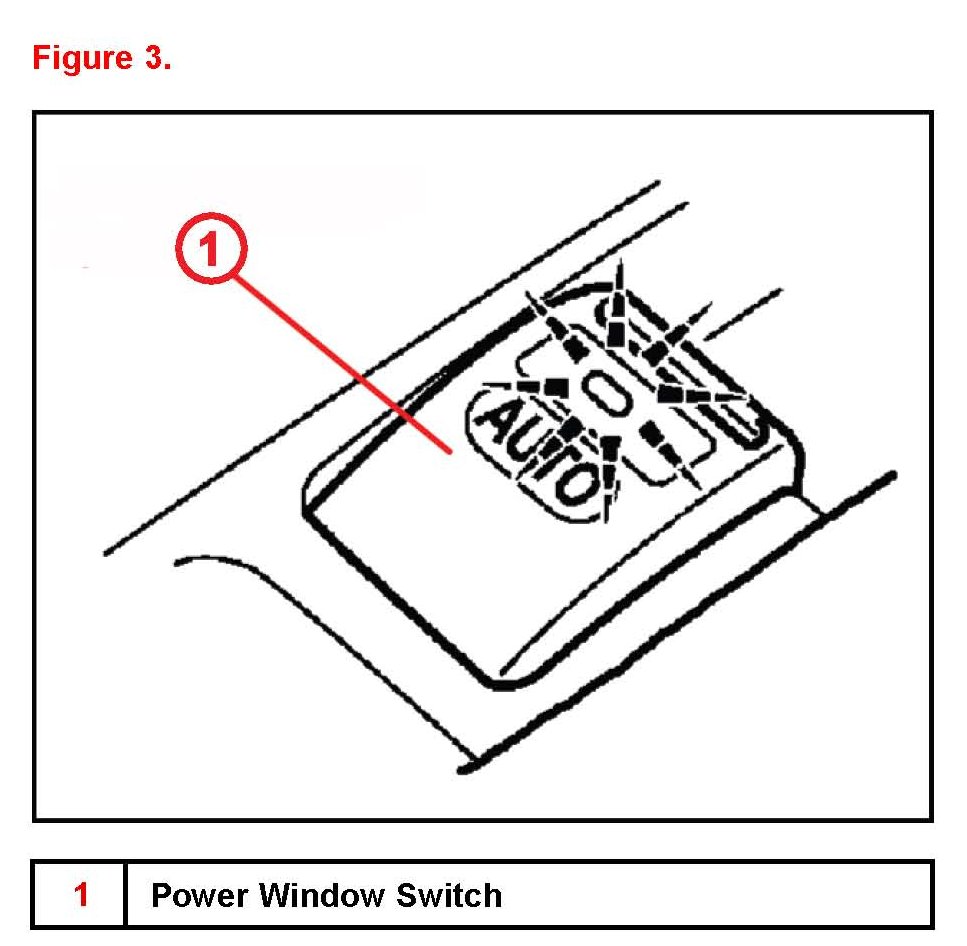

At this time the power window switch for the passenger's door window should be blinking.





1. Push down and hold the passenger's door power window switch to completely open the window.

2. Pull and hold up the passenger's door power window switch until the window closes. Continue holding the switch until the switch changes from blinking to a constant illumination.

3. Check for proper operation of the "one-touch open and close" function by fully pushing the switch briefly to the "DOWN" and "UP" positions.

NOTE
Jam protection function for the passenger's window becomes effective through the above initialization procedure.
