Front Passenger Side Power Window Motor Circuit

WINDSHIELD / WINDOWGLASS: POWER WINDOW CONTROL SYSTEM: Front Passenger Side Power Window Motor Circuit

Front Passenger Side Power Window Motor Circuit

DESCRIPTION

This circuit transmits signal from the multiplex network switch to power window regulator motor.

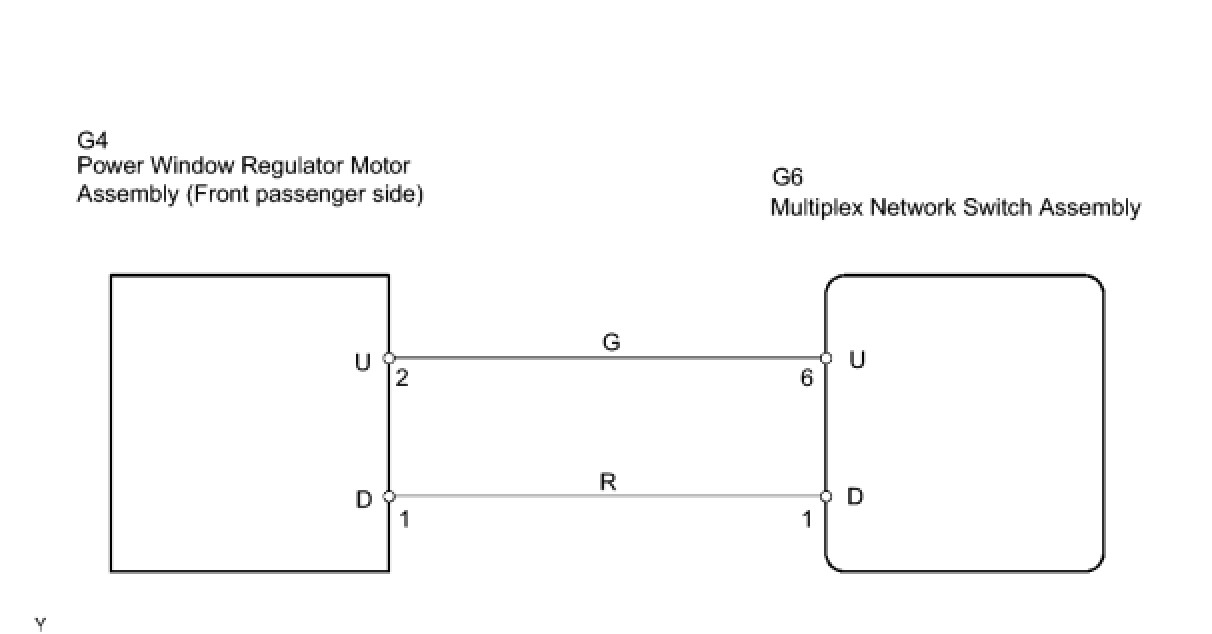

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

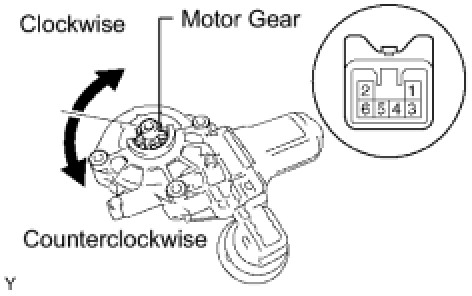

1. INSPECT POWER WINDOW REGULATOR MOTOR (FRONT PASSENGER SIDE)





(a) Remove the power window motor.

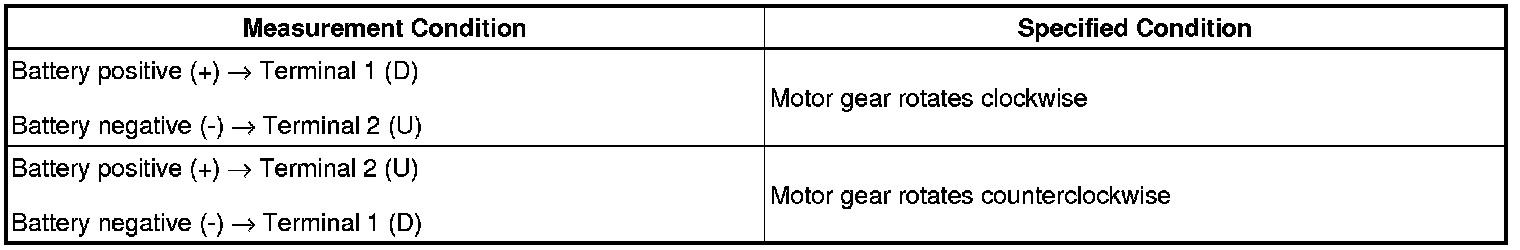

(b) Apply battery voltage to the motor connector according to the table below.

NOTE: Do not apply battery voltage to any terminals except terminals 1 and 2.

Standard:






NG -- REPLACE POWER WINDOW REGULATOR MOTOR (FRONT PASSENGER SIDE)
OK -- Continue to next step.

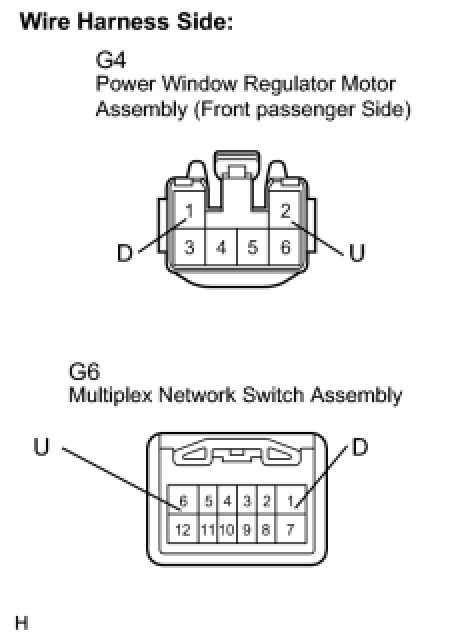

2. CHECK WIRE HARNESS (WINDOW REGULATOR MOTOR - MULTIPLEX NETWORK SWITCH)





(a) Disconnect the G4 and G6 connectors.
(b) Measure the resistance of the wire harness side connectors.
Resistance:






NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- PROCEED TO NEXT INSPECTION PROCEDURE SHOWN IN PROBLEM SYMPTOMS TABLE
