Front Passenger Side Power Window Switch Circuit

WINDSHIELD / WINDOWGLASS: POWER WINDOW CONTROL SYSTEM: Front Passenger Side Power Window Switch Circuit

Front Passenger Side Power Window Switch Circuit

DESCRIPTION

This circuit transmits signals from the multiplex network master switch assembly to multiplex network switch assembly.

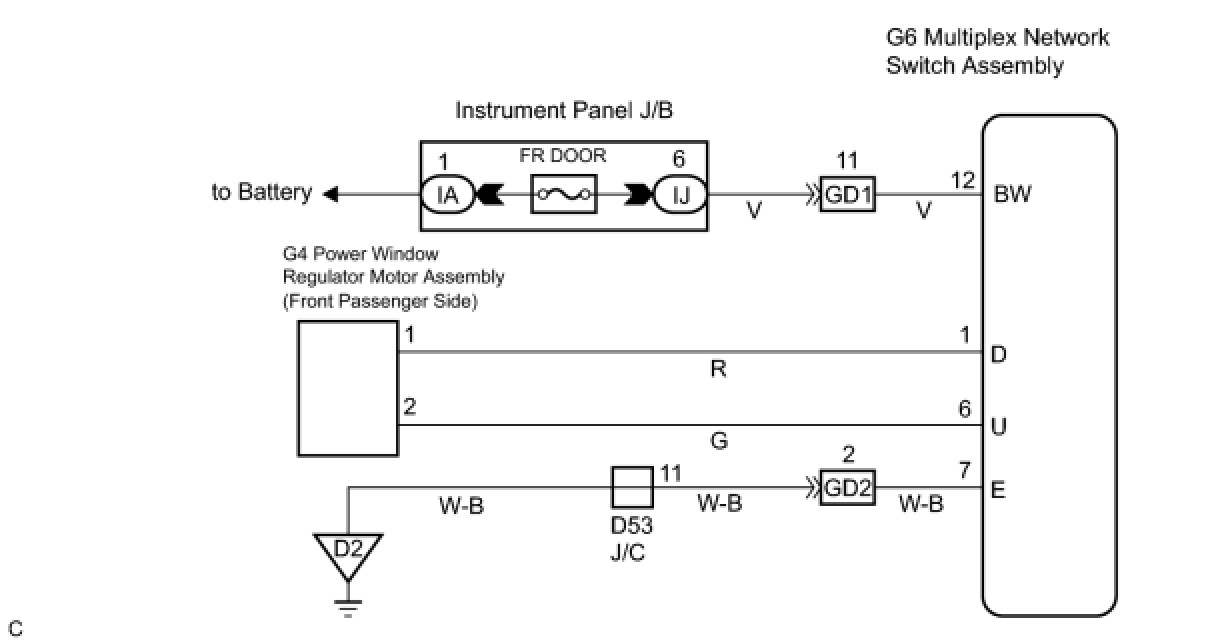

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

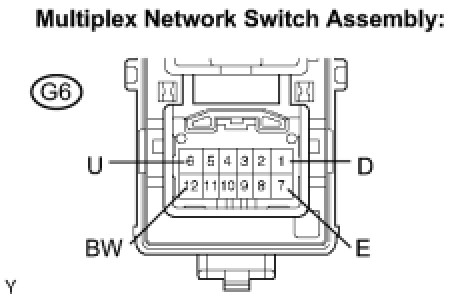

1. INSPECT MULTIPLEX NETWORK SWITCH ASSEMBLY





(a) Remove the switch.
(b) Measure the resistance of the switch when the switch is operated.

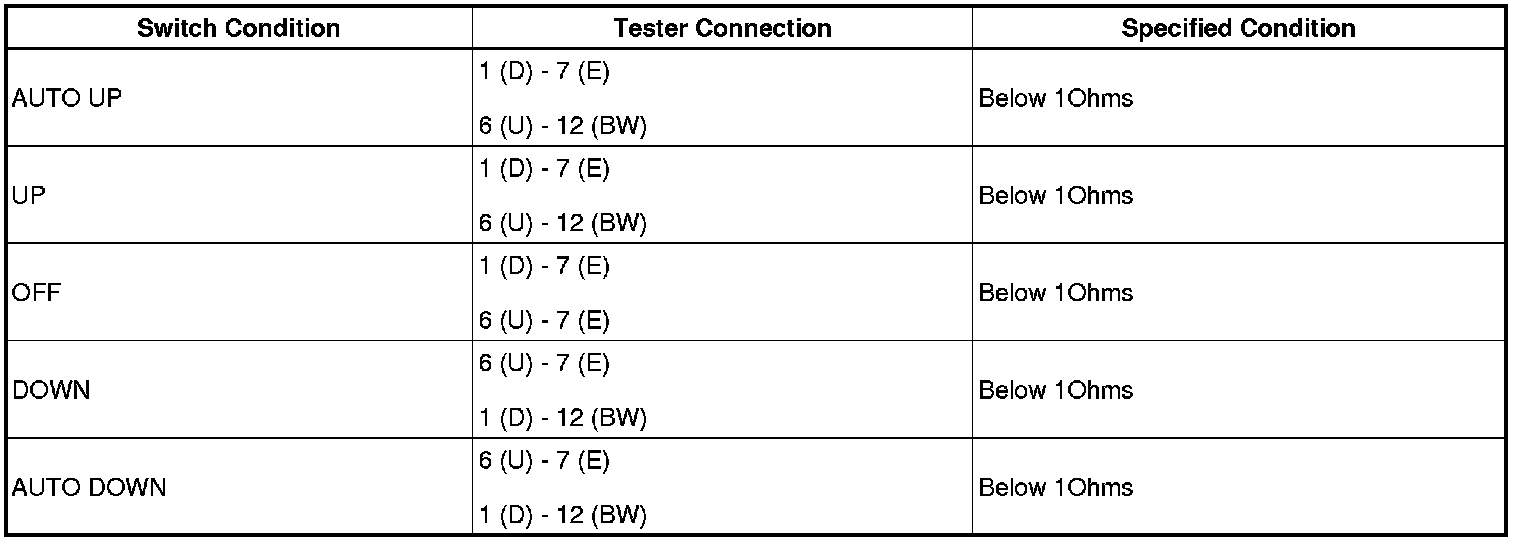

Resistance:






NG -- REPLACE MULTIPLEX NETWORK SWITCH ASSEMBLY
OK -- PROCEED TO NEXT INSPECTION PROCEDURE SHOWN IN PROBLEM SYMPTOMS TABLE
