Rear Power Window Motor LH Circuit

WINDSHIELD / WINDOWGLASS: POWER WINDOW CONTROL SYSTEM: Rear Power Window Motor LH Circuit

Rear Power Window Motor LH Circuit

DESCRIPTION

This circuit transmits signal from the power window regulator switch assembly (Rear LH) to power window regulator motor assembly (Rear LH).

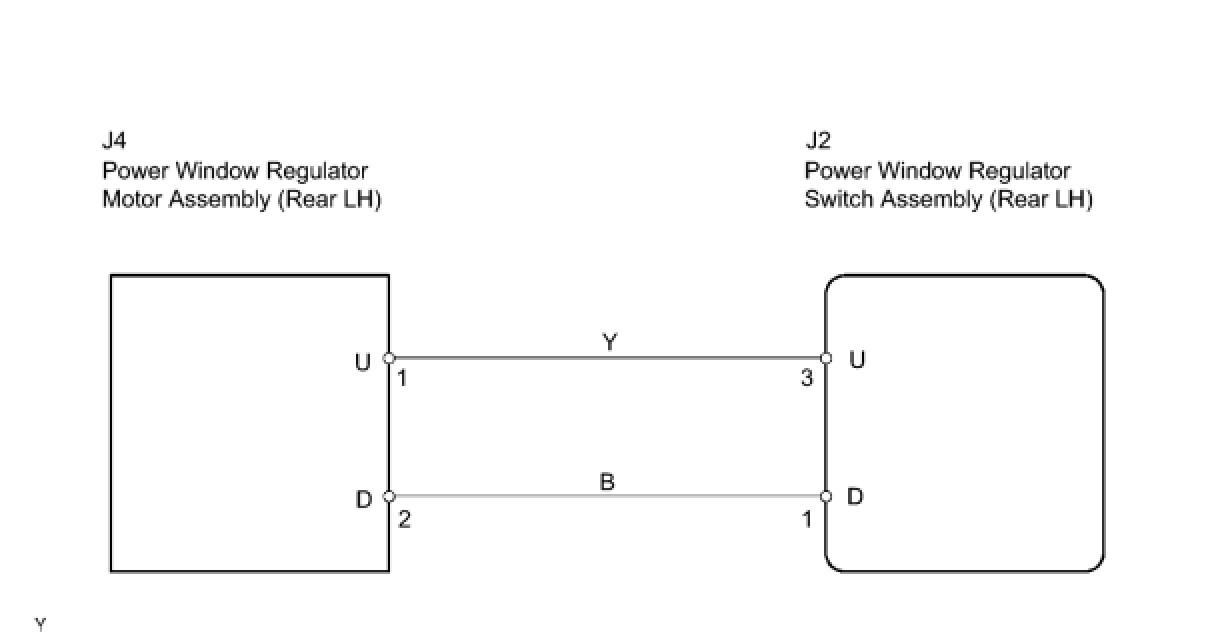

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. INSPECT POWER WINDOW REGULATOR MOTOR (REAR LH)





(a) Remove the power window regulator motor.

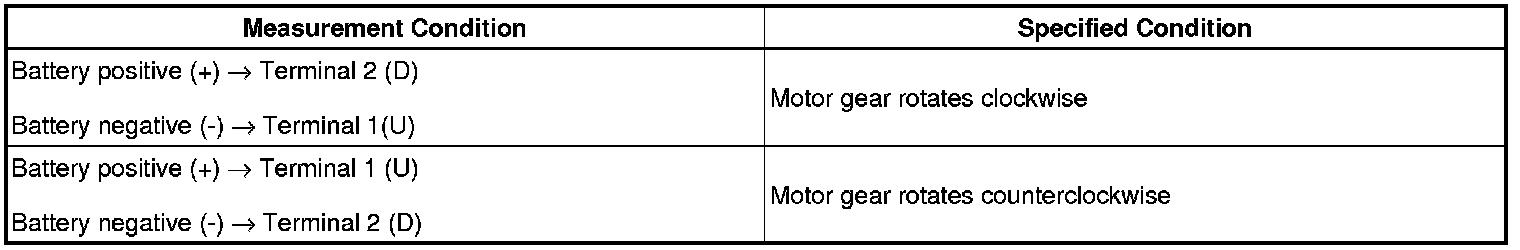

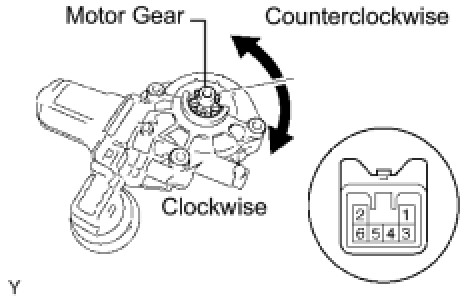

(b) Apply battery voltage to the motor connector according to the table below.

NOTE: Do not apply battery to any terminals except terminals 1 and 2.

Standard:






NG -- REPLACE POWER WINDOW REGULATOR MOTOR (REAR LH)
OK -- Continue to next step.

2. CHECK WIRE HARNESS (WINDOW REGULATOR MOTOR - POWER WINDOW REGULATOR SWITCH)





(a) Disconnect the J2 and J4 connectors.

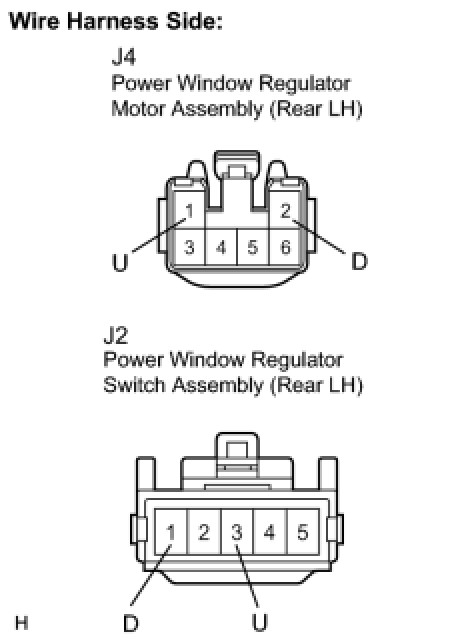

(b) Measure the resistance of the wire harness side connectors.

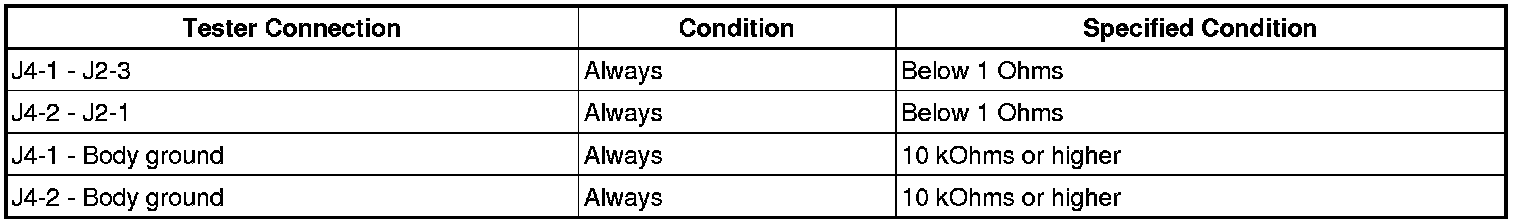

Resistance:






NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- PROCEED TO NEXT INSPECTION PROCEDURE SHOWN IN PROBLEM SYMPTOMS TABLE
