Pinout Values and Diagnostic Parameters

WINDSHIELD / WINDOWGLASS: POWER WINDOW CONTROL SYSTEM: TERMINALS OF ECU

TERMINALS OF ECU

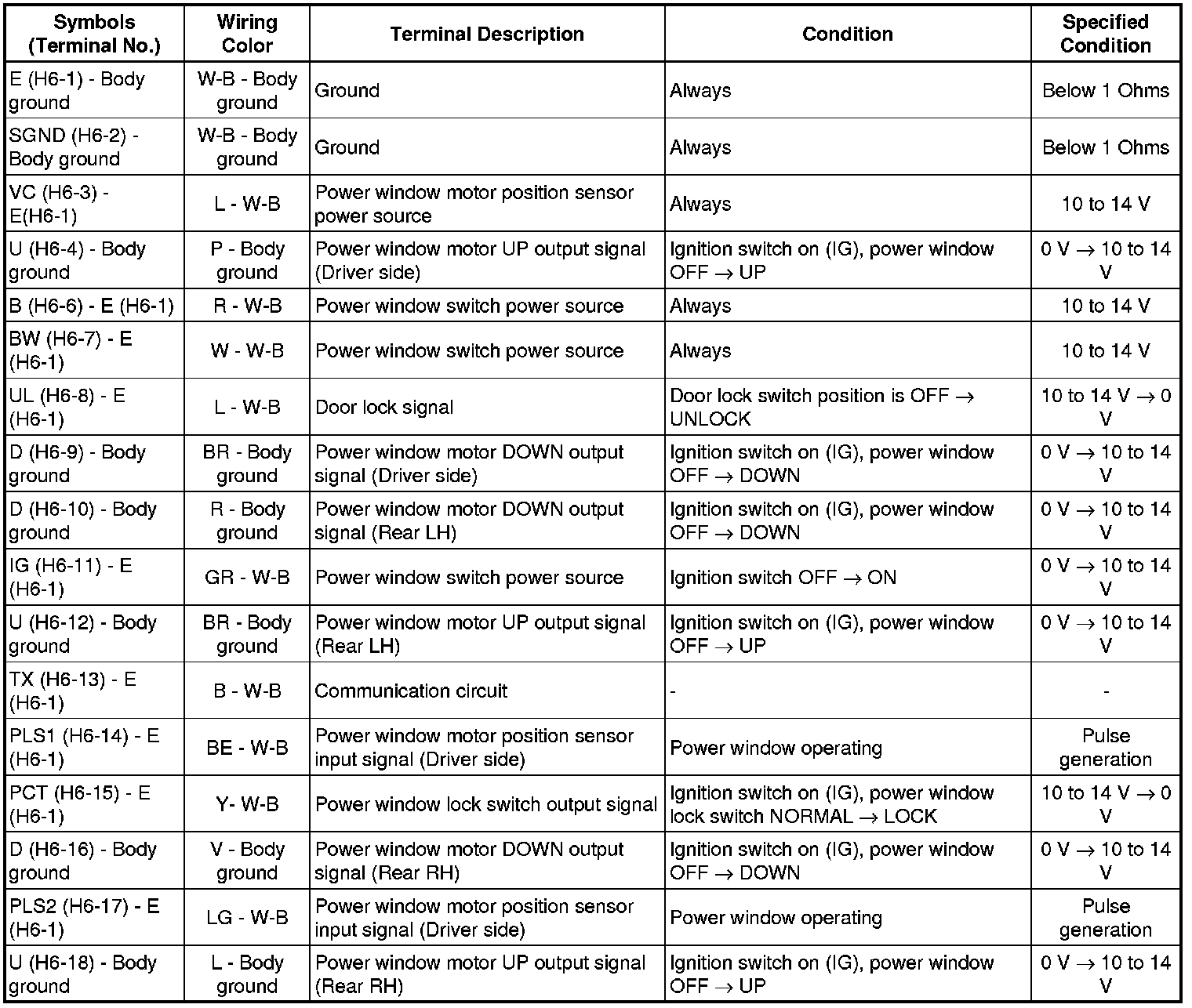

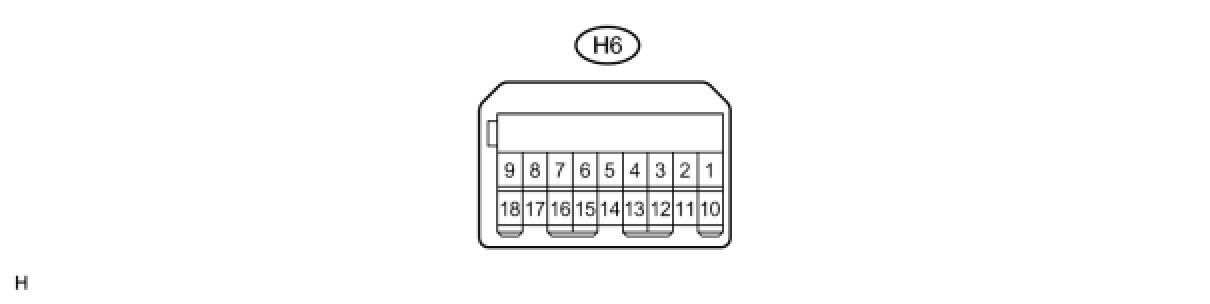

1. MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY

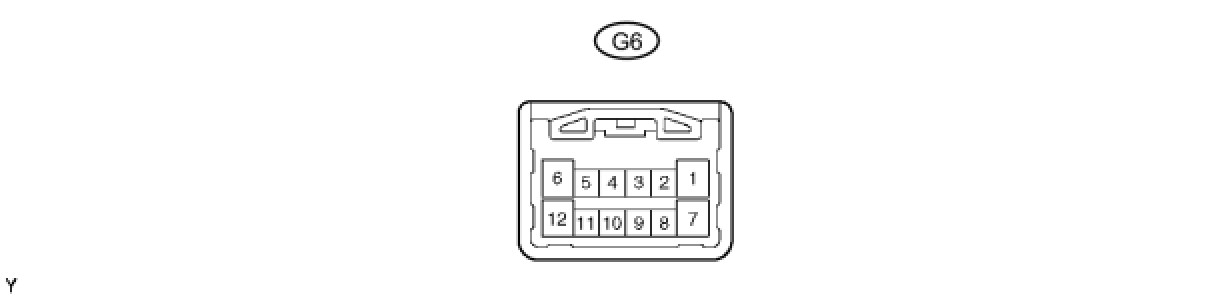

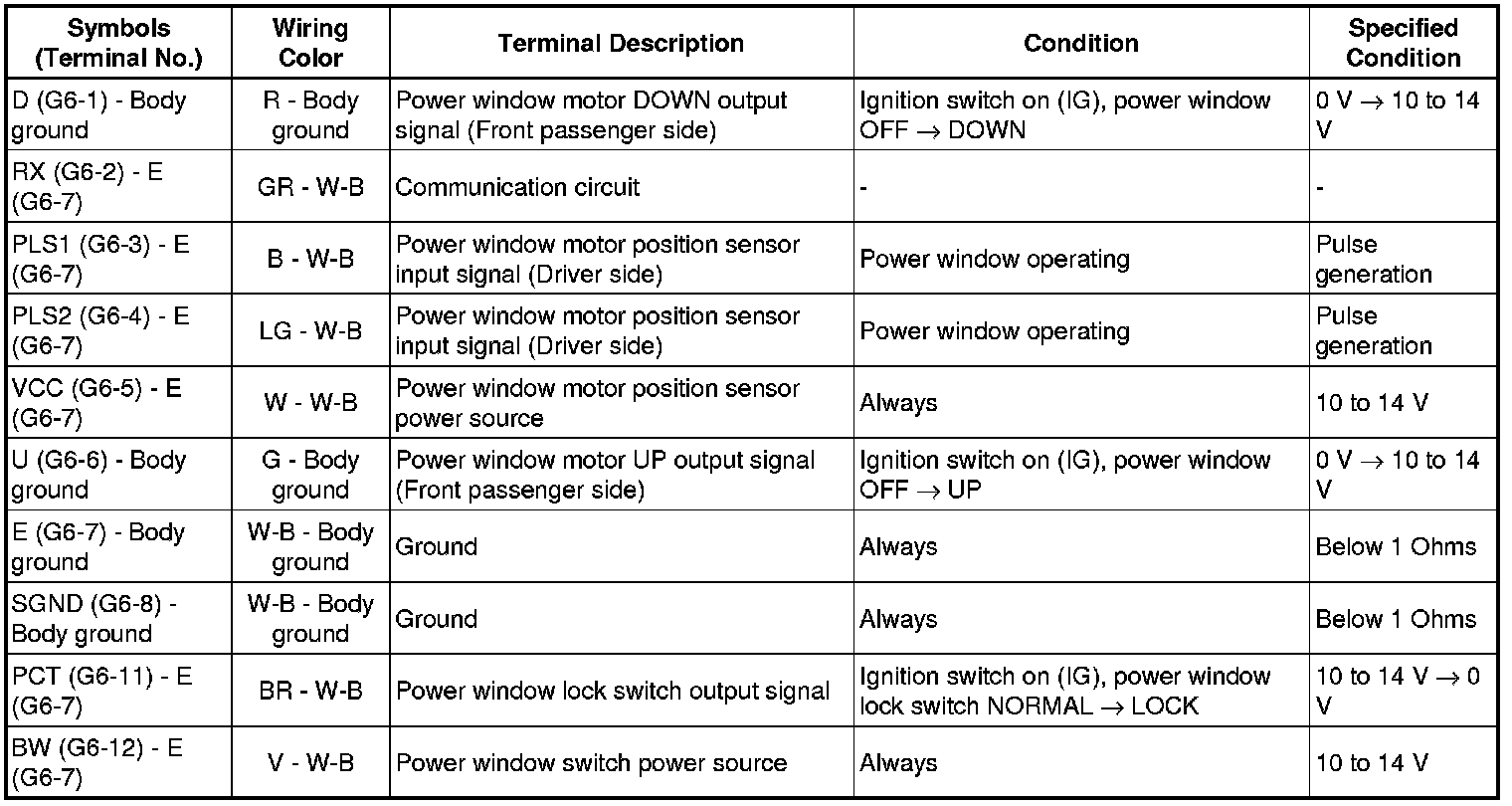

2. MULTIPLEX NETWORK SWITCH ASSEMBLY
