Windshield Washer Spray Nozzle: Testing and Inspection

WIPER AND WASHER: WASHER NOZZLE: INSPECTION

INSPECTION

1. REMOVE WASHER NOZZLE SUB-ASSEMBLY
(a) With the engine running, check the position the washer fluid hits the windshield.
Standard:

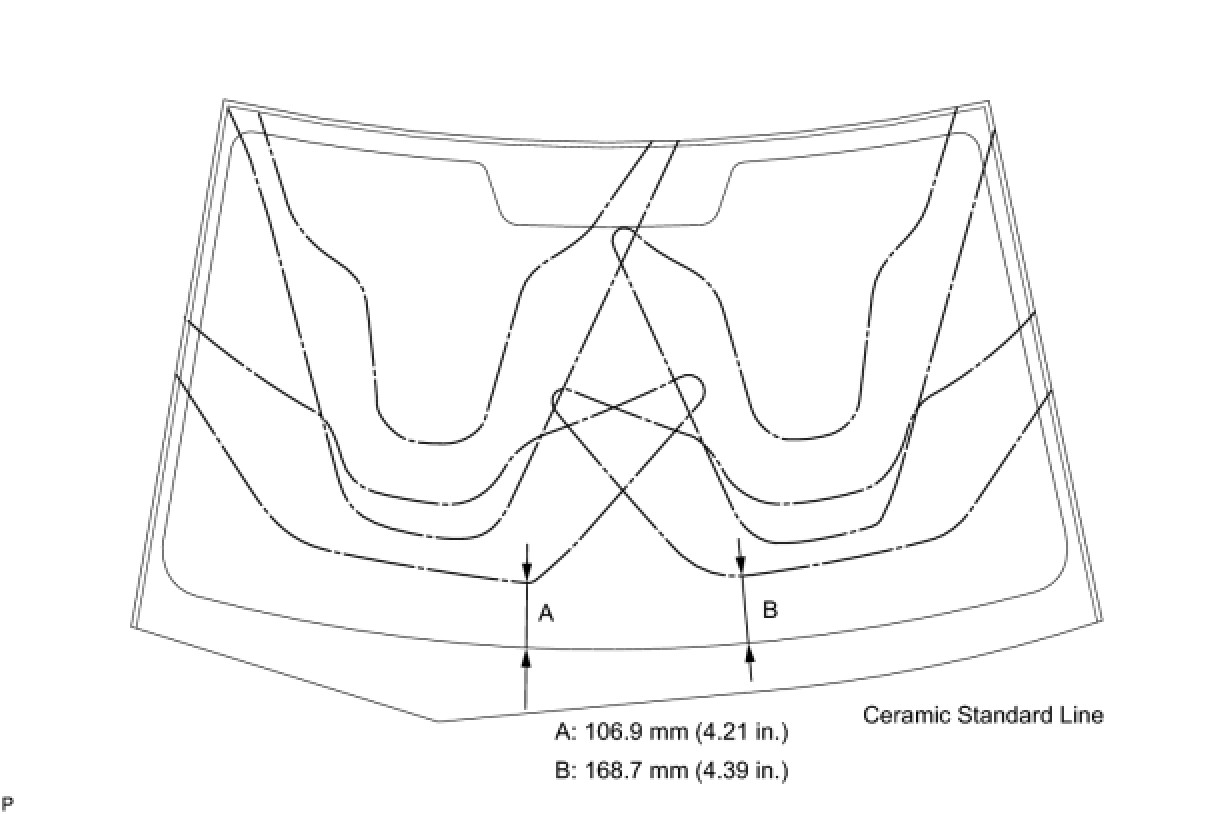

Washer fluid hits the windshield in the areas shown in the illustration.
