WIPER AND WASHER: FRONT WIPER MOTOR: REMOVAL

REMOVAL

HINT: Installation is in the reverse order of removal.

1. REMOVE WINDSHIELD WIPER ARM AND BLADE ASSEMBLY LH

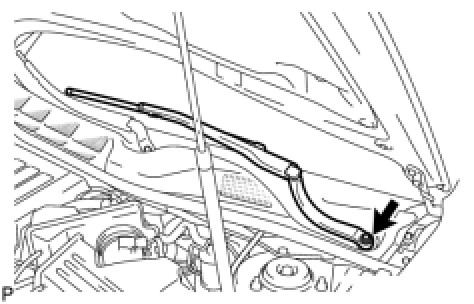

(a) Remove the nut and FR wiper arm & blade assembly LH.
2. REMOVE WINDSHIELD WIPER ARM AND BLADE ASSEMBLY RH

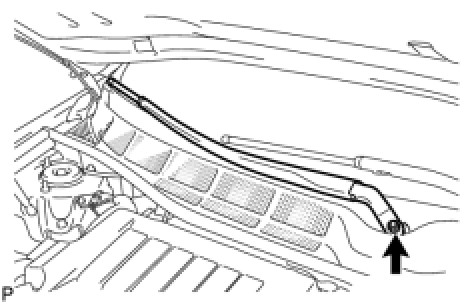

(a) Remove the nut and FR wiper arm & blade assembly RH.
3. REMOVE COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY

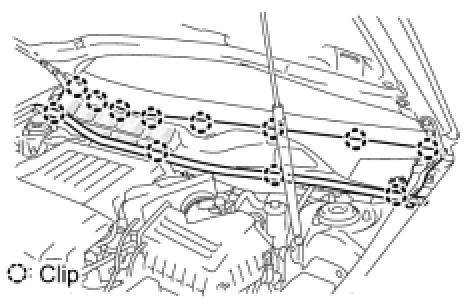

(a) Disengage the 12 clips, and remove the cowl top ventilator louver RH.
4. REMOVE WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY





(a) Disconnect the connector.
(b) Remove the 4 bolts and windshield wiper motor & link assembly.
5. REMOVE WINDSHIELD WIPER LINK ASSEMBLY

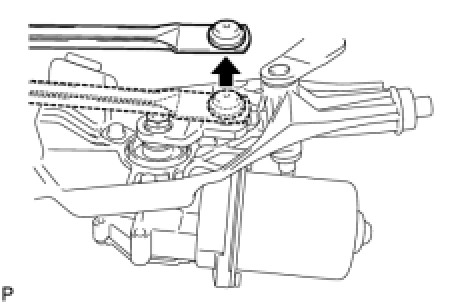

(a) Using a screwdriver wrapped with protective tape, separate the rod of the wiper link assembly from the windshield wiper motor assembly as shown in the illustration.





(b) Remove the 3 bolts and wiper link assembly.
