Wireless Door Lock Control System (W/ Smart Key System)

DOOR LOCK: WIRELESS DOOR LOCK CONTROL SYSTEM (w/ Smart Key System): B1242: Wireless Door Lock Tuner Circuit Malfunction

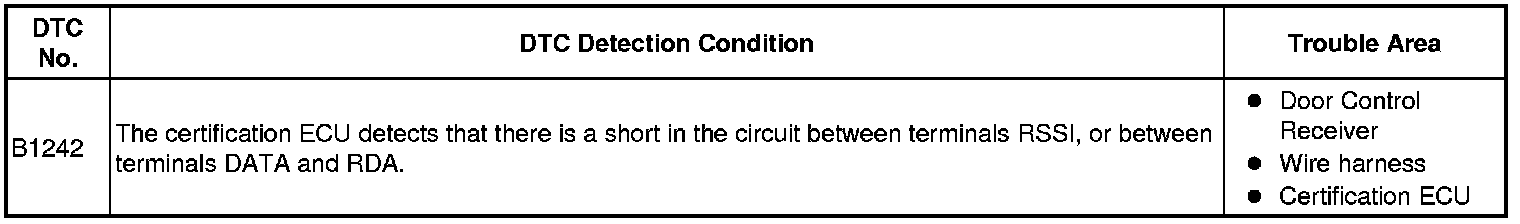

DTC B1242 - Wireless Door Lock Tuner Circuit Malfunction

DESCRIPTION

- The electrical key antenna is used to receive electric waves relating to the entry functions of the smart key system. The certification ECU decodes the requested smart key system operation by identifying a key code based on electric waves received via the electrical key antenna and the door control receiver.
- The door control receiver receives a signal from the wireless door control transmitter and sends signals to the main body ECU through the certification ECU.
- The certification ECU then sends a command, according to the requested operation, to each ECU. (e.g. If door lock operation is requested, the ECU sends a door lock command to the main body ECU.)

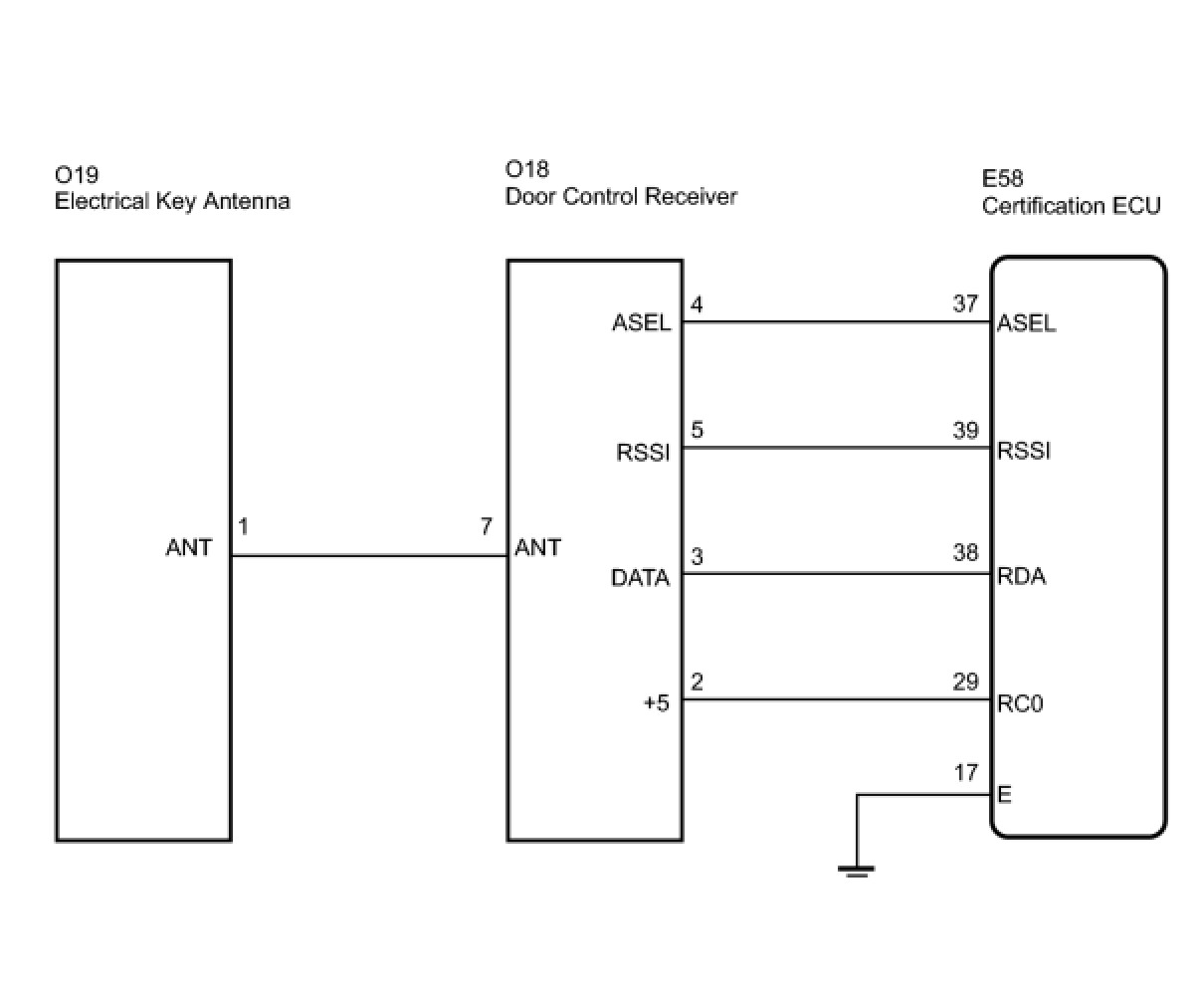

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. CHECK HARNESS AND CONNECTOR (CERTIFICATION ECU - DOOR CONTROL RECEIVER)

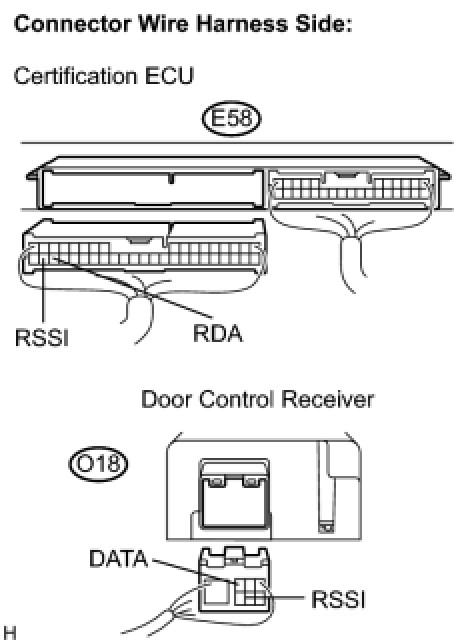

(a) Disconnect the E58 certification ECU connector and O18 door control receiver connector.
(b) Measure the resistance according to the value(s) in the table below.

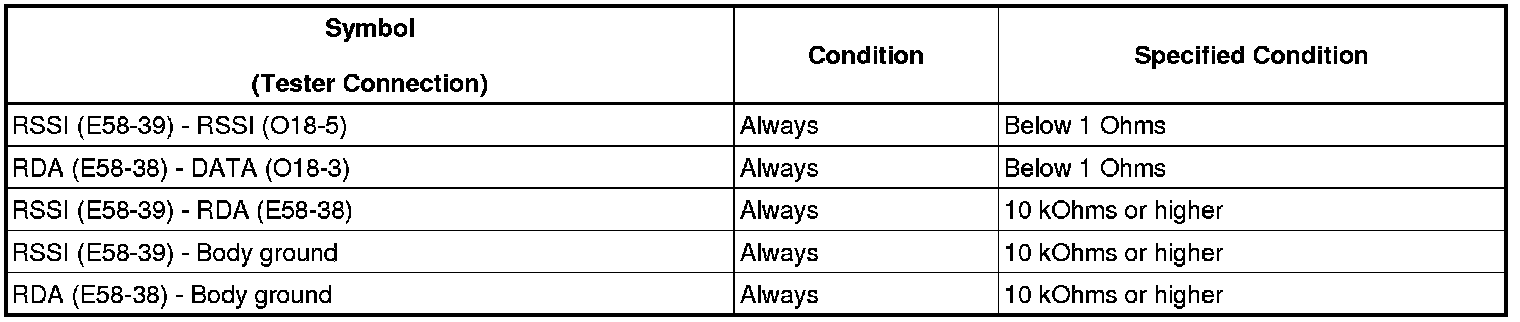

Standard resistance:






NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.
2. INSPECT CERTIFICATION ECU

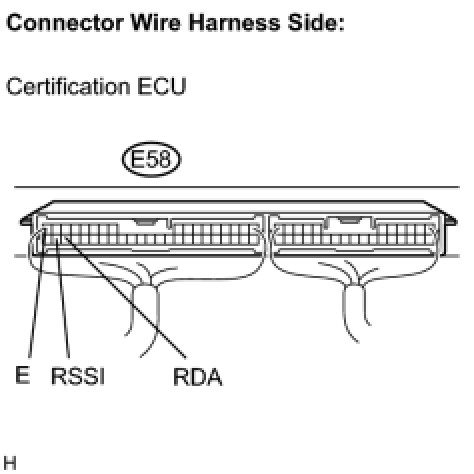

(a) Reconnect the E58 ECU connector.
(b) Measure the voltage according to the value(s) in the table below.

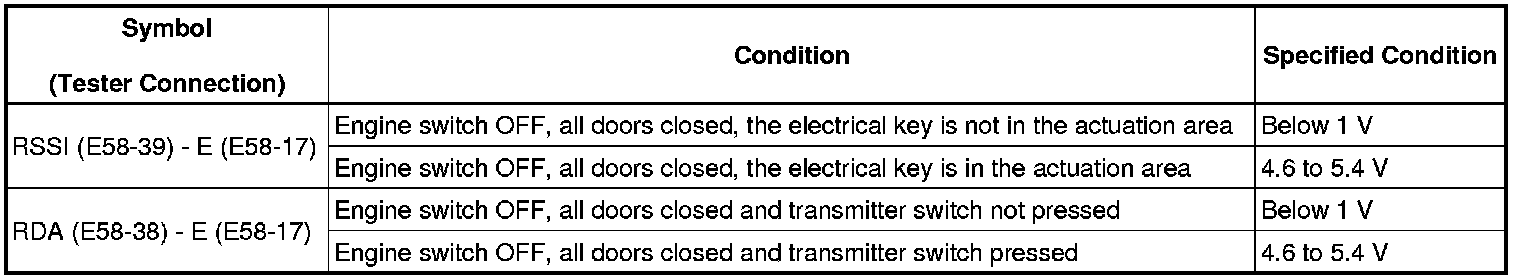

Standard voltage:






NG -- REPLACE CERTIFICATION ECU
OK -- Continue to next step.
3. REPLACE DOOR CONTROL RECEIVER
(a) Replace the door control receiver with a normal one.
(b) Perform the registration procedure.
OK:
The system returns to normal operation.
NG -- REPLACE CERTIFICATION ECU
OK -- END
