Problem Symptoms Table

NAVIGATION: NAVIGATION SYSTEM: PROBLEM SYMPTOMS TABLE

PROBLEM SYMPTOMS TABLE
HINT:
- Before inspecting the suspected areas listed in the table below, check the fuse and relay.
- Before inspecting the suspected areas listed in the table below, check the DTCs.
- Methods used to verify the cause of the problem are listed in order of probability in the suspected area column.

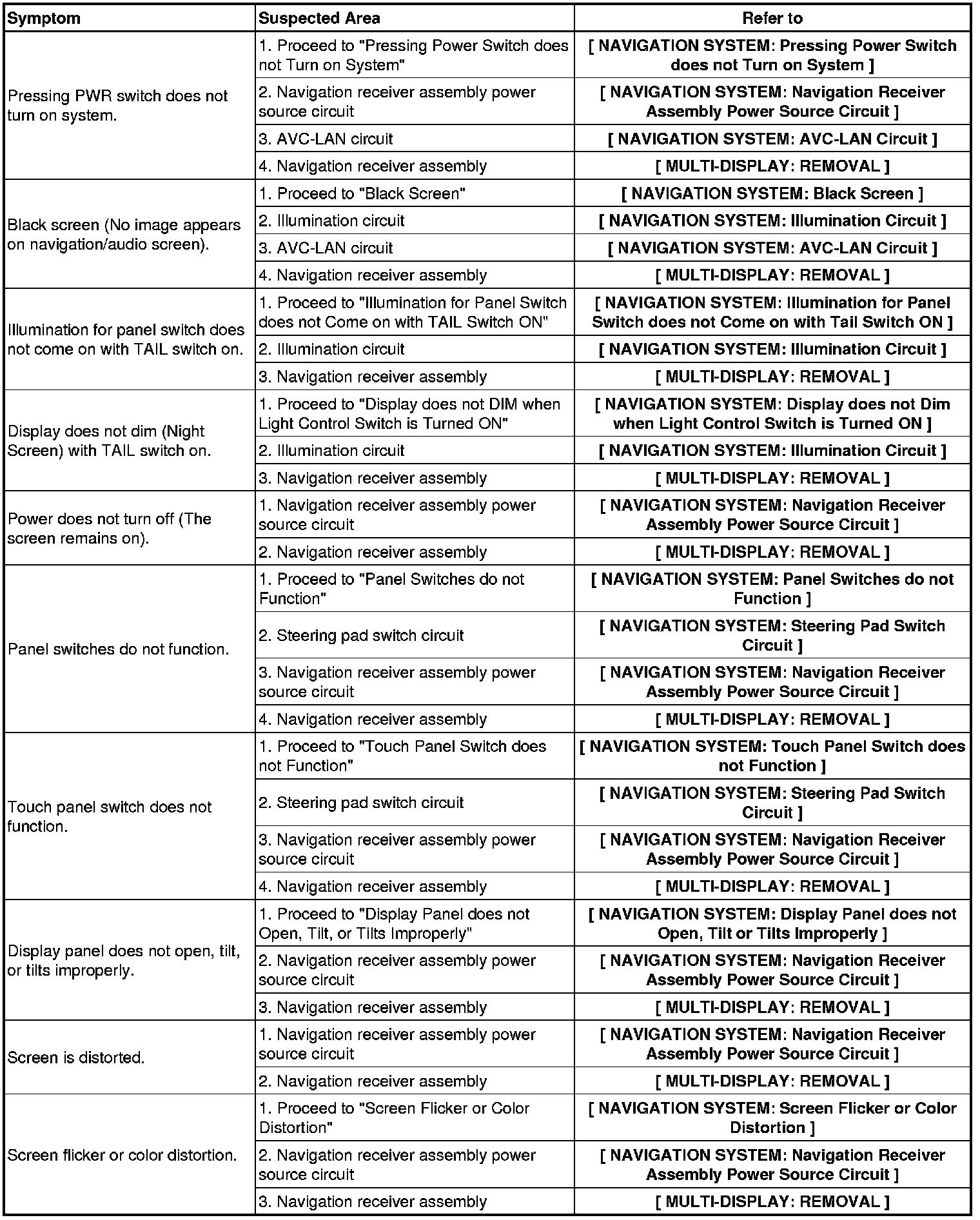

Display function:

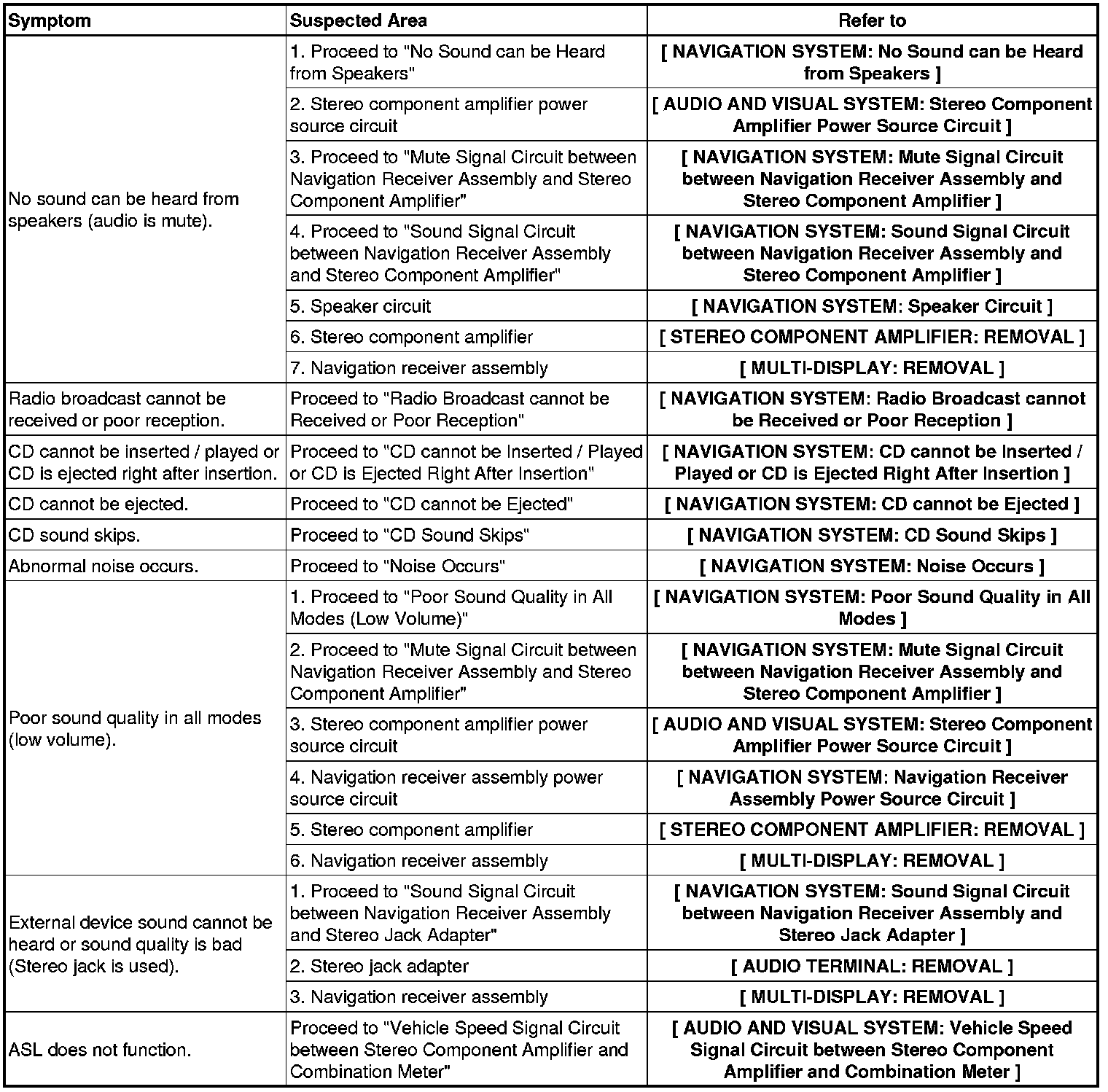

Audio function:

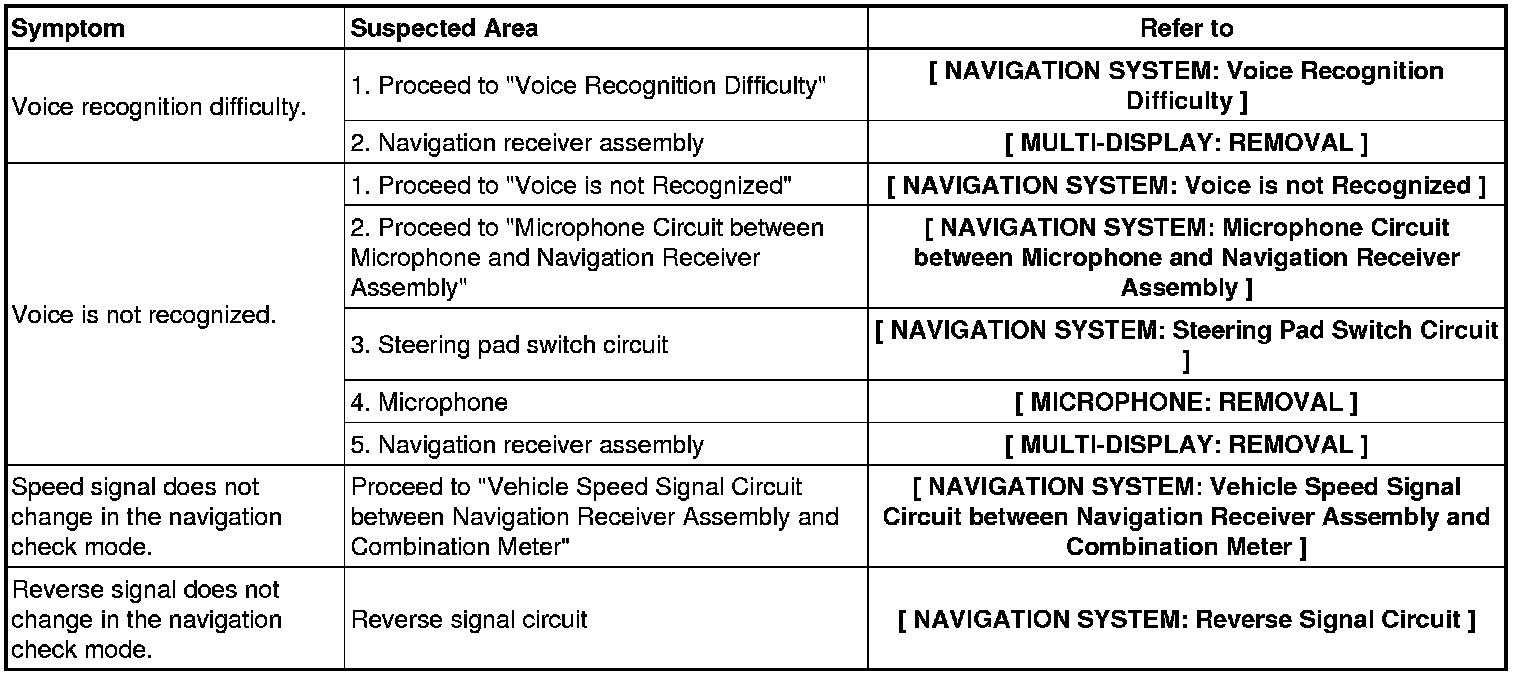

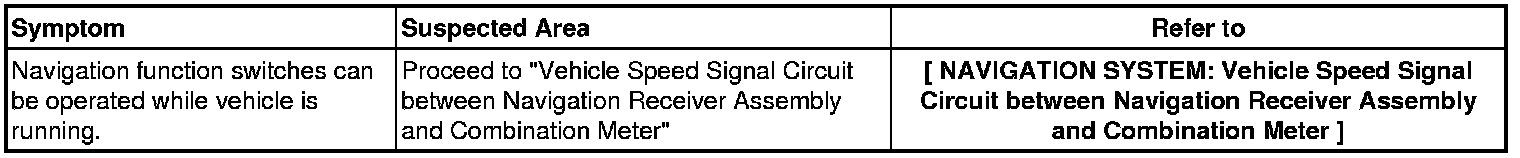

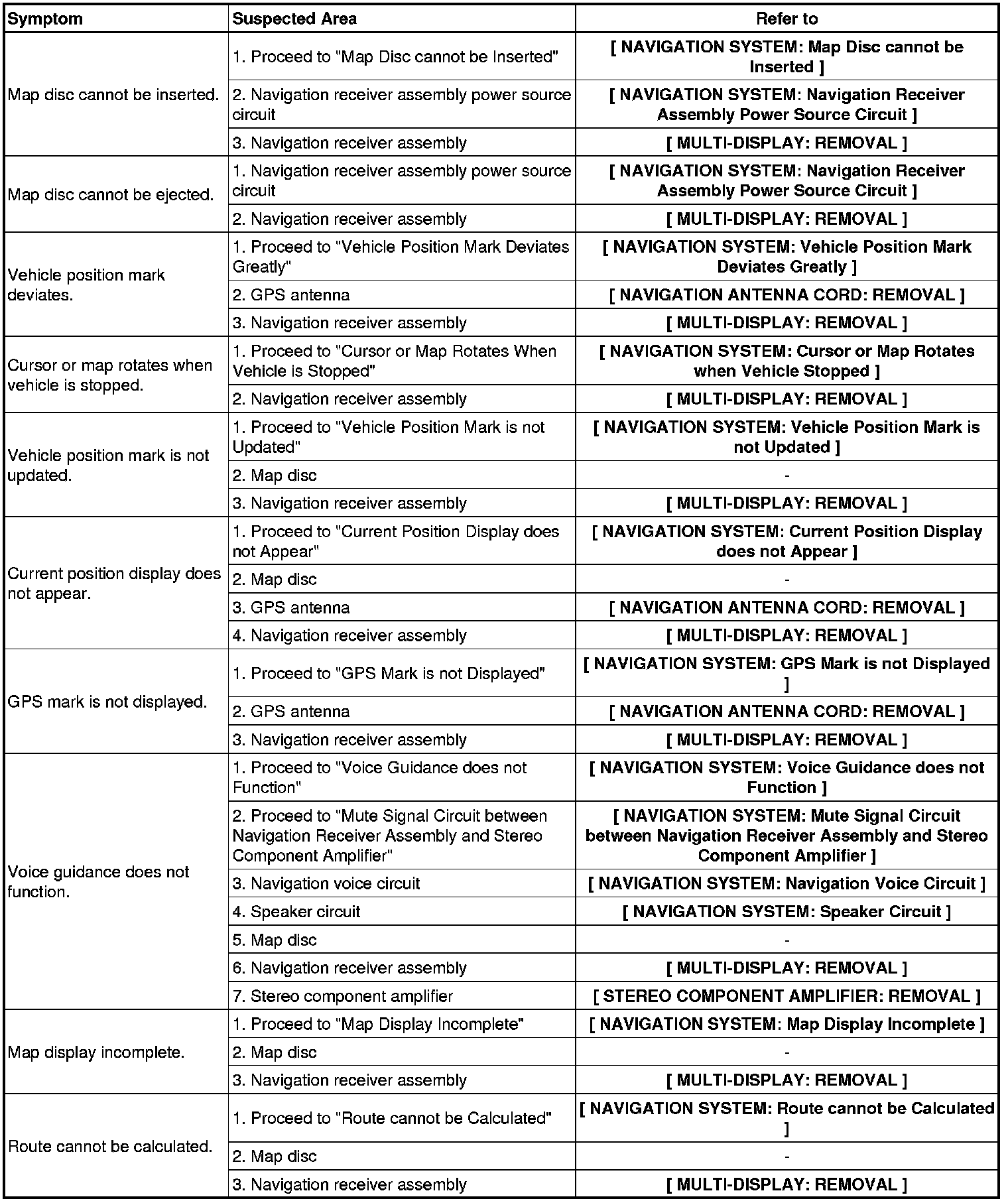

Navigation function:

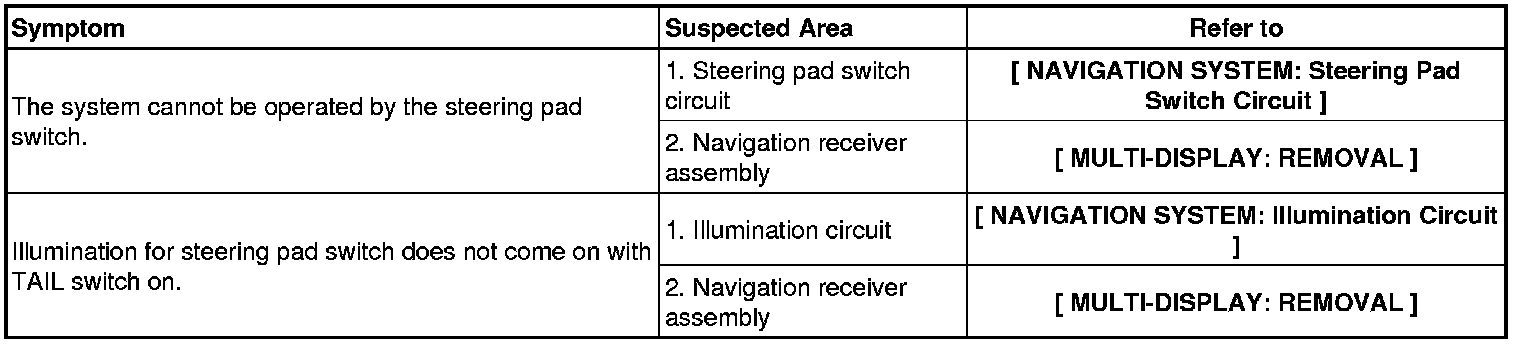

Steering pad switch function:

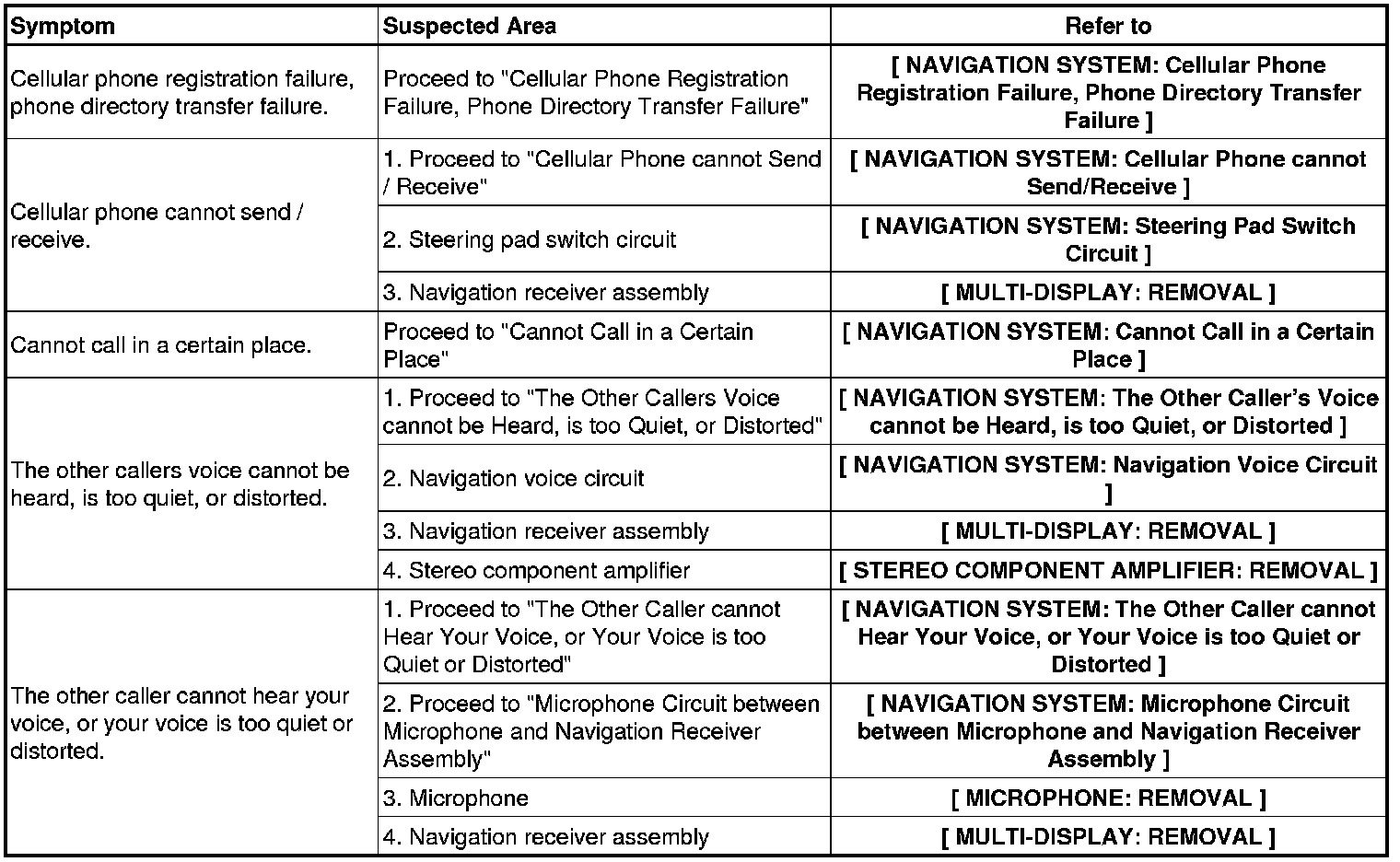

"Bluetooth" function:
