VSC Warning Light Does Not Come ON

BRAKE CONTROL: VEHICLE STABILITY CONTROL SYSTEM (for BOSCH Made): VSC Warning Light does not Come ON

VSC Warning Light does not Come ON

DESCRIPTION

The skid control ECU communicates with the combination meter assembly via CAN communication. If the ECU stores a DTC, the master caution indicator light will illuminate, and the DTC will be displayed on the multi-information display in the combination meter (models with multi-information display). On models without a multi-information display, the VSC warning light will come on when the skid control ECU stores a DTC.

WIRING DIAGRAM





INSPECTION PROCEDURE
HINT: Check the condition of each related circuit connector before troubleshooting Electronic Circuit Inspection Procedure.

PROCEDURE

1. CHECK CAN COMMUNICATION SYSTEM
(a) Check if a CAN communication system DTC is output Vehicle Stability Control System (for BOSCH Made).

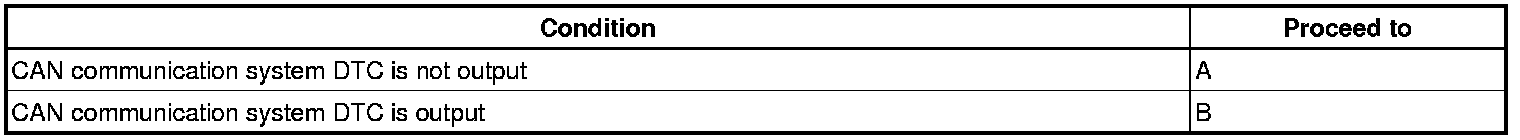

Result:






B -- INSPECT CAN COMMUNICATION SYSTEM
A -- Continue to next step.
2. INSPECT COMBINATION METER ASSEMBLY
(a) Connect Techstream to the DLC3.
(b) Perform "Active Test" of the combination meter assembly using Techstream Meter / Gauge System.
(c) Check that "ON" and "OFF" of the VSC warning (multi-information display) or VSC warning light are indicated on the combination meter assembly when using Techstream.
OK:
The VSC warning (multi-information display) turns on or off in accordance with Techstream.
NG -- REPLACE COMBINATION METER ASSEMBLY
OK -- REPLACE BRAKE ACTUATOR ASSEMBLY
