Removal

2AZ-FE LUBRICATION: ENGINE OIL COOLER (w/ Oil Cooler): REMOVAL

REMOVAL

1. REMOVE FRONT WHEEL OPENING EXTENSION PAD RH
2. REMOVE FRONT WHEEL OPENING EXTENSION PAD LH
3. REMOVE ENGINE UNDER COVER RH
4. REMOVE ENGINE UNDER COVER LH
5. DRAIN ENGINE COOLANT Testing and Inspection
6. DRAIN ENGINE OIL Replacement
7. REMOVE OIL FILTER SUB-ASSEMBLY Replacement
8. REMOVE ENGINE OIL COOLER

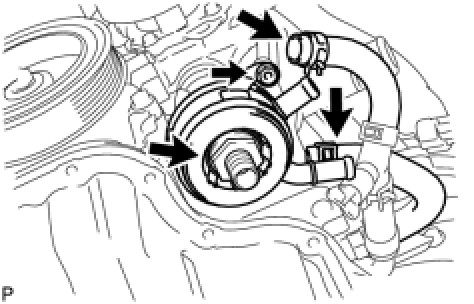

(a) Disconnect the 2 oil cooler hoses from the oil cooler.
(b) Remove the oil cooler union bolt, plate washer, nut, oil cooler and O-ring.
