Installation

2AZ-FE ENGINE MECHANICAL: ENGINE FRONT OIL SEAL: INSTALLATION

INSTALLATION

1. INSTALL TIMING CHAIN CASE OIL SEAL
(a) Apply MP grease to a new oil seal lip.
NOTICE: Keep the lip free from foreign matter.

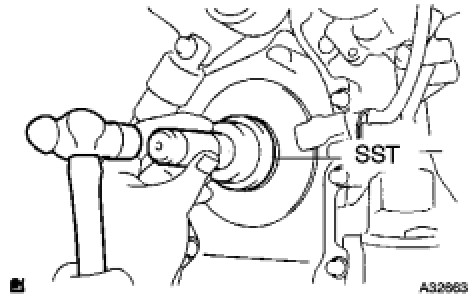

(b) Using SST and a hammer, tap in the oil seal until its surface is flush with the rear oil seal retainer edge.
SST: 09223-22010
NOTICE: Wipe off extra grease from the crankshaft.

2. INSTALL CRANKSHAFT PULLEY

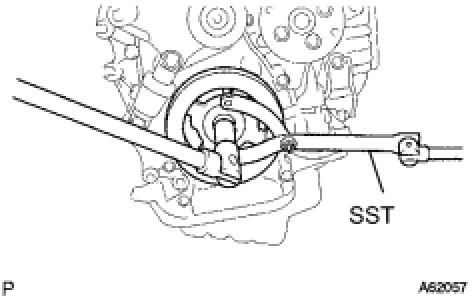

(a) TMMK made:
(1) Align the pulley set key with the key groove of the pulley.




(2) Using SST, fix the pulley in place and tighten the bolt.
SST: 09960-10010
09962-01000
09963-01000
Torque: 180 Nm (1835 kgf-cm, 133ft-lbf)

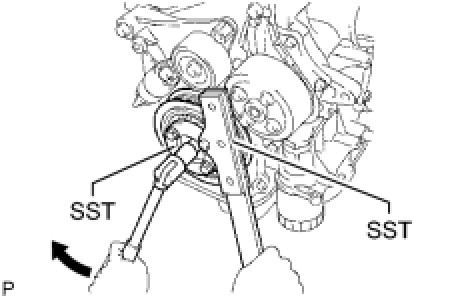

(b) TMC made:
(1) Align the pulley set key with the key groove of the pulley.




(2) Using SST, fix the pulley in place and tighten the bolt.
SST: 09213-54015
91651-60855
SST: 09330-00021
Torque: 180 Nm (1835 kgf-cm, 133ft-lbf)
3. INSTALL V-RIBBED BELT Installation
4. INSTALL ENGINE UNDER COVER LH
5. INSTALL ENGINE UNDER COVER RH
6. INSTALL FRONT FENDER APRON SEAL RH
7. INSTALL FRONT WHEEL RH
8. INSPECT FOR ENGINE OIL LEAK
